Item:H4, Panel Saw: Horizontal/Vertical, 50 in Cutting Ht, 70 in Overall Ht, 8 in Blade Dia.

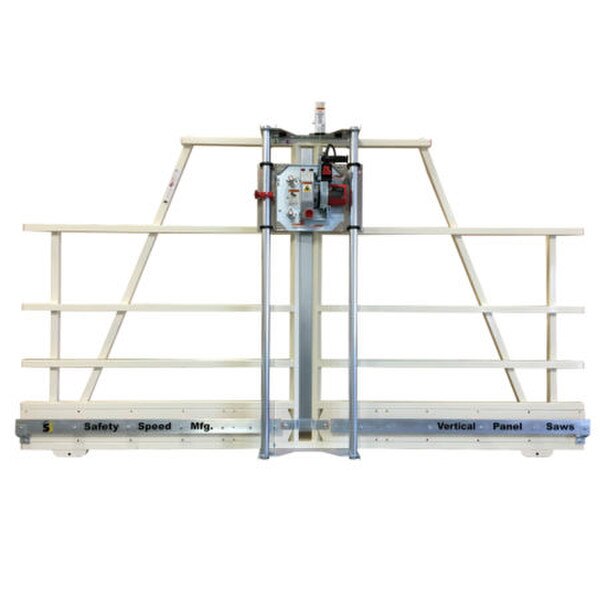

Safety Speed Manufacturing H-4 Panel Saw
The H-Series offers full-sized vertical panel saw productivity in economical machines. H-Series saws cut within 1/32" on a wide variety of panel materials up to 1¾" thick. H-Series saws are used in all kinds of panel processing applications.
- 3¼ Hp, 15 amp industrial duty saw motor.
- Zinc plated 1¾"steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Thin material pressure guard.
- Spring loaded counter balance system.
- Injection-molded plastic material rollers.
- Quick change from vertical to horizontal cutting.
- Max. Crosscut: 50"/1270mm
- Max. Rip Cut: Unlimited
- Max. Cut Thickness: 1¾"/45mm
- Cut Accuracy, Straight and Square: 1/32"/0,8mm
- Saw Blade Diameter: 8"/200mm
- Motor: 120V, 15amp (220V available)
- Frame Length: 120"/3050mm
- Shipping Weight: 244 lbs./ 111 kg
- 1 Year parts warranty.
- Lifetime frame warranty.
Panel Saw stand, wheels and vac are optional
