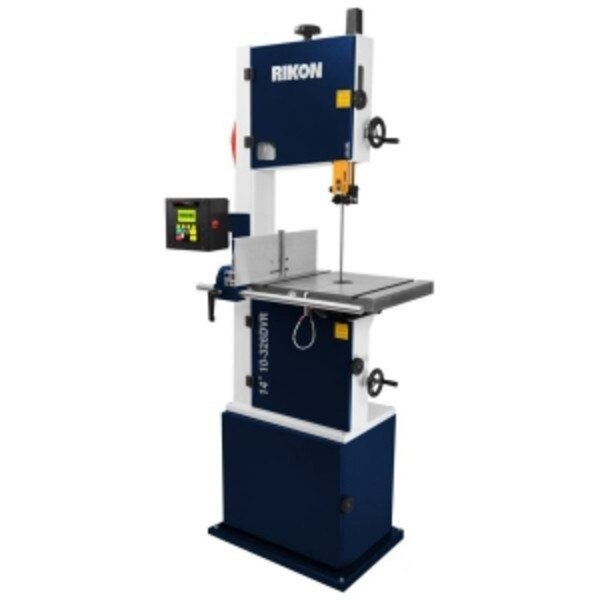

Item:10-326DVR, 14" DELUXE BANDSAW 14 AMP 300# VARIABLE SPEED

Rikon 10-326DVR 14 Inch Deluxe Bandsaw with  Variable Speed Motor.

After selecting one of the 15 preset speeds you can adjust the speed with the controller from the preset to match your needs.

Unlike most variable speed bandsaws there is No Oil to check or gears to wear out.

14" Deluxe Bandsaw with Smart Motor DVR Control

Blade Speed – Variable from 100 RPM (45 SFPM) to 2,375 RPM (4400 SFPM)

Continuous Torque – 1.75 HP will never slow down producing a beautiful/smooth cut

Safer Operation – Fast electronic braking and load spike detection

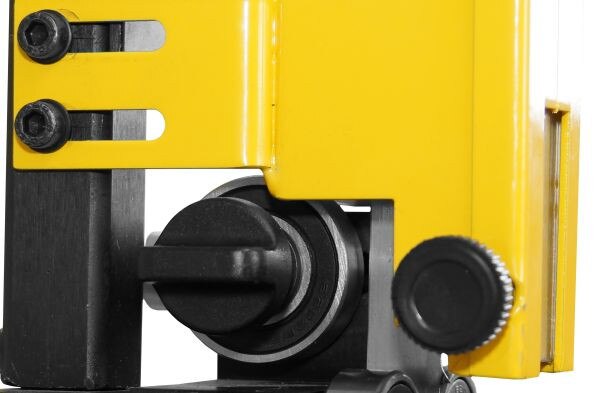

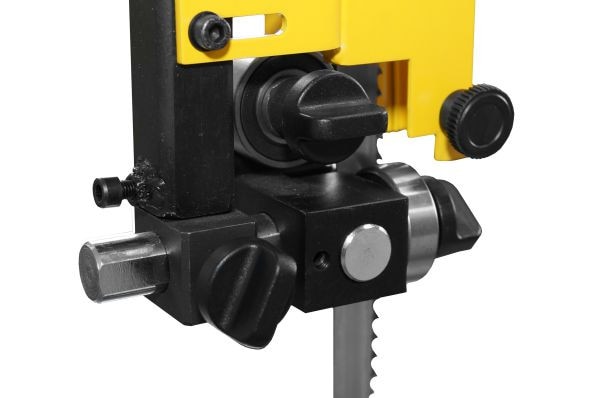

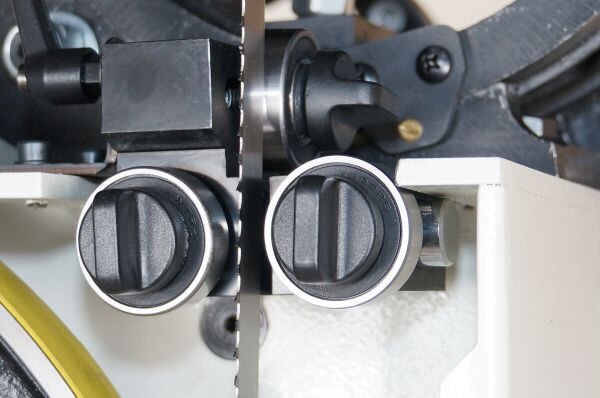

Patent Pending – Spring Loaded Tool-less Guide System

Effortless Cutting – Fifteen suggested speed settings for wood/metal/plastic plus one custom range

14" Deluxe Bandsaw #10-326DVR has all of the 10-326 features with an added benefit

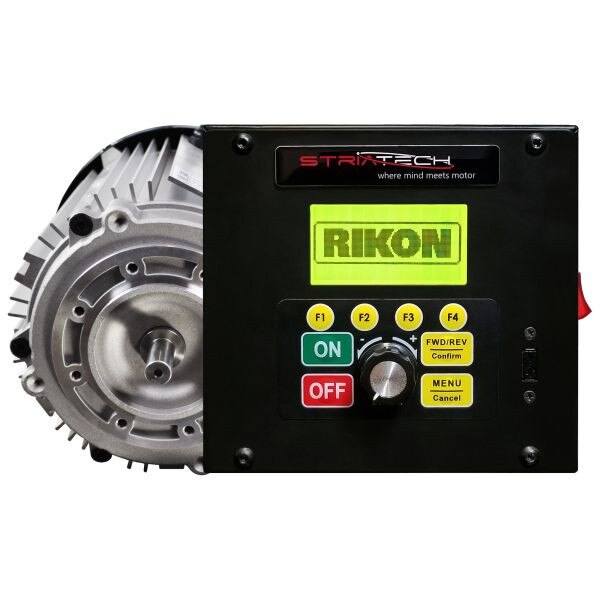

By adding Striatech’s smart switched reluctance motor, RIKON’s 14” bandsaw #10-326 is better than ever before. Unlike conventional bandsaw motors, the Striatech motor is infinitely variable, and offers continuous torque.

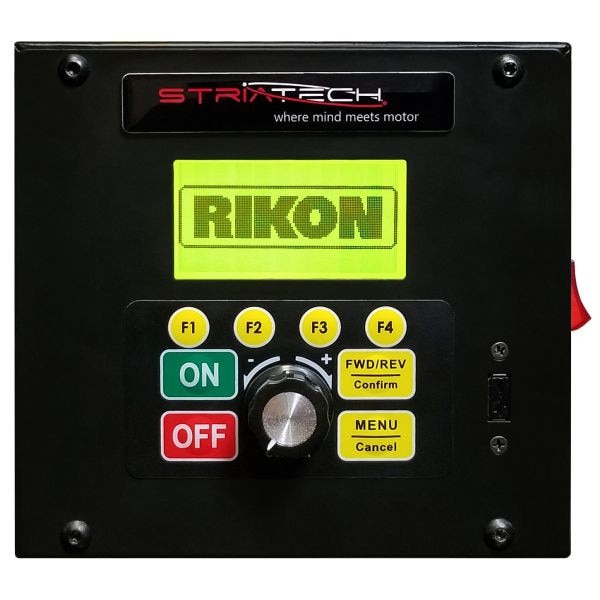

This means you get a consistent and beautiful finish cut on your workpiece, and a much easier user experience. Improved energy efficiency and quiet, vibration-free operation are added bonuses when upgrading your bandsaw with this new high-tech and innovative motor control system. With an easy-to-read screen and DVR controller, this technology adds much-needed features to the bandsaw.

• DVR Motor
• Horsepower 1.75HP Single Phase
• Amps 15 Amps
• Volts 110V or 220V
• Blade Speed (Variable) 100 RPM (45 SFPM) to 2,375 RPM (4400 SFPM)

4-Wood Preset Functions

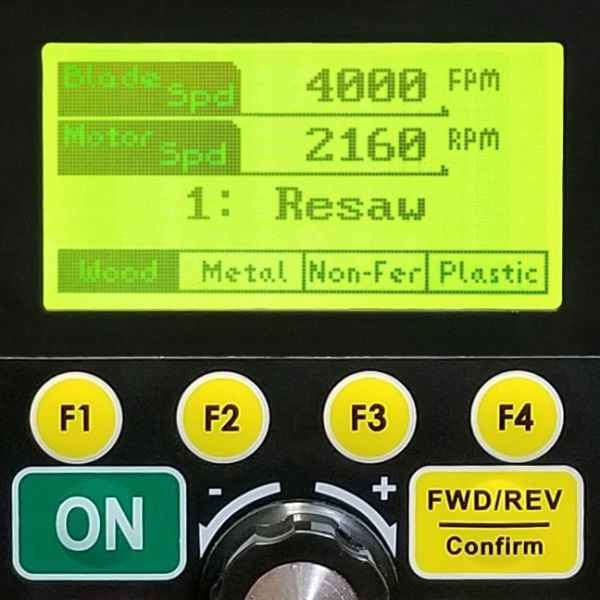

1. Resaw preset speed 4,000 SFPM (2,160 RPM) / Variable from 2,000 SFPM to 4,400 SFPM (1080 to 2,375 RPM)
2. Bowl Blank preset speed 3,000 SFPM (1,620 RPM) / Variable from 1,500 SFPM to 3,600 SFPM (810 to 1,945 RPM)
3. Rip/ Cross Cut preset speed 2,500 SFPM (1,350 RPM) / Variable from 1,250 SFPM to 3,600 SFPM (675 to 1,620 RPM)
4. Scroll/ Pattern speed 2,000 SFPM (1,080 RPM) / Variable from 1,000 SFPM to 2,400 SFPM (540 to 1,295 RPM)

4-Metal Preset Functions

1. Carbon Steel preset speed 250 SFPM (135 RPM) / Variable from 175 SFPM to 350 SFPM (195 to 395 RPM)

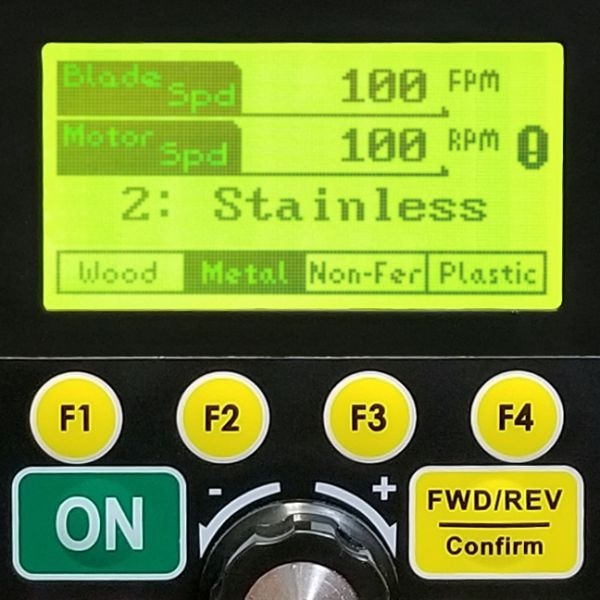

2. Stainless Steel preset speed 100 SFPM (110 RPM) / Variable from 70 SFPM to 150 SFPM (100* to 170 RPM)
3. Titanium preset speed 75 SFPM (100* RPM) / Variable from 65 SFPM to 85 SFPM (100* to 100* RPM)
4. Cast Iron preset speed 160 SFPM (180 RPM) / Variable from 95 SFPM to 225 SFPM (105 to 255 RPM)
*Must change belt to slow pulley range
4-Non-Ferrous Metal Preset Functions

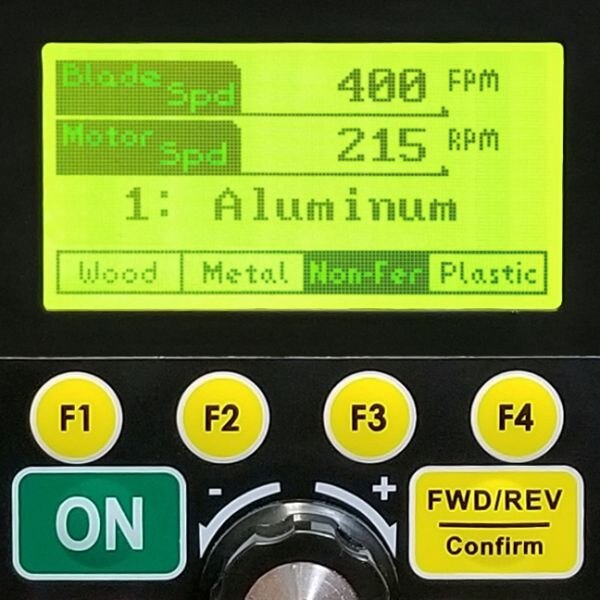

1. Aluminum preset speed 400 SFPM (445 RPM) / Variable from 300 SFPM to 440 SFPM (340 to 500 RPM)
2. Brass preset speed 250 SFPM (280 RPM) / Variable from 150 SFPM to 315 SFPM (170 to 355 RPM)
3. Bronze preset speed 220 SFPM (250 RPM) / Variable from 80 SFPM to 260 SFPM (100 to 295 RPM)
4. Copper preset speed 200 SFPM (225 RPM) / Variable from 160 SFPM to 220 SFPM (180 to 250 RPM)

3-Plastic Preset Functions

1. Acrylic speed 2500 SFPM (2,845 RPM) / Variable from 1,500 SFPM to 4,000 SFPM (1,705 to 3,500 RPM)
2. Nylon speed 1500 SFPM (1,705 RPM) / Variable from 900 SFPM to 2,100 SFPM (1,025 to 2,390 RPM)

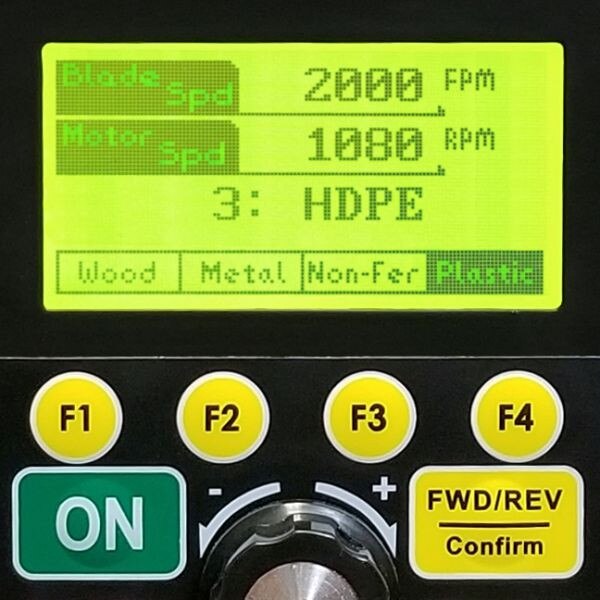

3. HDPE speed 2000 SFPM (2,275 RPM) / Variable from 1,800 SFPM to 3,000 SFPM (2,050 to 3,415 RPM)
1-Custom Preset Function
1. Custom Preset Speed 2,000 SFPM (2,275 RPM) / Variable from 45 SFPM allowed up to 4000 SFPM (100 to 3,500 RPM)

Cutting Capacity

• Height 13”
• Width 13-5/8”
• Blade (Includes 111” x 5/8” , 4 TPI, Reg.)
• Width 3/16” – 3/4”
• Length 111”

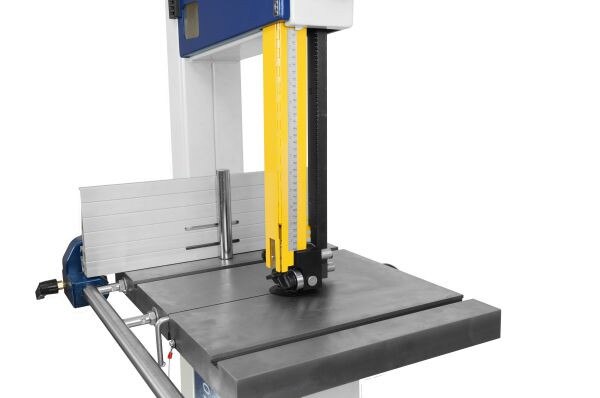

Table

• Size 21-1/2” x 15-3/4”

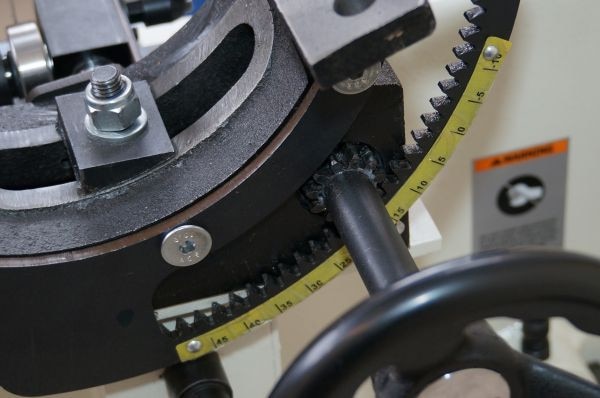

• Left Tilt -7°
• Right Tilt 45°
• Miter Gauge “T” Slot (2) 3/4” x 3/8”

Height to Floor 40-1/2”
Height to Base 20-7/8”

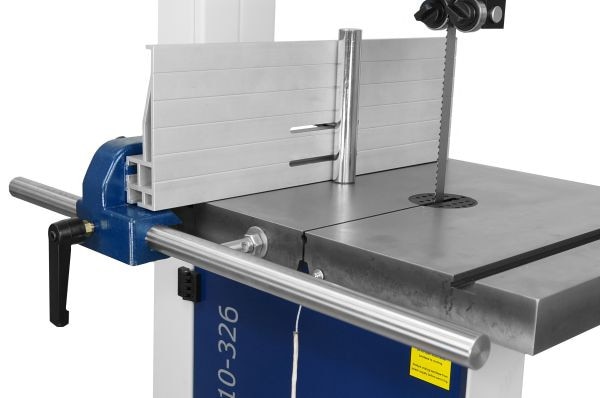

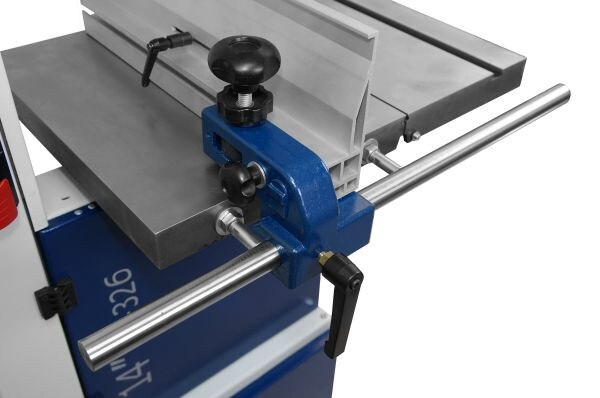

Fence Size 18-3/4” x 1-3/4” x 6”

Overall
Height 76”
Width 33-3/4”
Depth 25”
Base Size 24” x 17-5/8”
Dust Port 1@4”
Net Weight 285 lbs.
Shipping Weight 293 lbs.
Shipping Carton 54-1/2”x17-7/8”x23-7/8”
Bandsaw Warranty 5 Years
Smart DVR Motor Warranty 2 Years
