Item:1792072K, 1900 CFM DUST COLLECTOR CANISTER VORTEX 3 HP

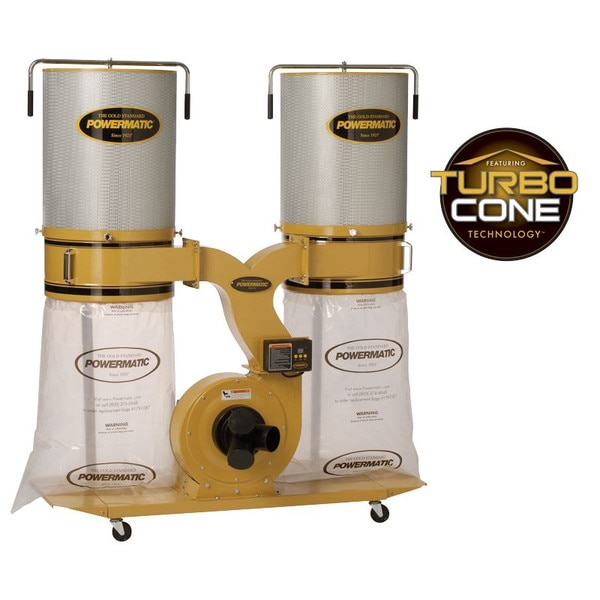

Powermatic 1792072K PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit
\t\t\t Features- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- All-metal duct construction for rigidity and improved air flow
- 2-micron canister filters offer over six times filtering surface area of standard bags
- The large impeller is powered by a 3HP motor for peak performance
- Triple 4? dust ports allow for several hoses to be attached at the same time
- Collection bags use a snap ring for rapid installation/removal
- 10 cubic feet collection bag capacity reduces number of bag changes.
- Four swivel casters for easy maneuverability
- Height: 45
- Length: 46
- Weight: 272
- Volume: 27.552
- Width: 23
- Motor Voltage (V.): 230 only
- 3-Hoses Connection Diameter (In.): 4
- Impeller Diameter (In.): 14
- Air Flow @ 8 (CFM): 1,782
- Impeller Fins: 7
- Recommended Circuit Size (Amps.): 30
- Motor Current (Amps): 15
- Static Pressure (WC): 11.31
- Filter Bag/Canister Length (In.): 26
- Number of Air Inlets: 1(8) or 3(4)
- 1-Hose Connection Diameter (In.): 8
- Motor Phase: 1
- Motor Power (HP): 3
- Air Flow @ 6 (CFM): 860
- Sound Rating (DB): 86 - 92
- Efficiency (Micron): 2
- Collection Bag Capacity (Cu. Ft.): 10
- Bag Diameter (In.): 20
- Collection Bag Length (In.): 30
- Air Flow @ 4 (CFM): 236
- Impeller Material: Steel
- Velocity @ 4 (FPM): 5,200
