Item:1791260B, PM2415B-3, 24"" BANDSAW, 5HP

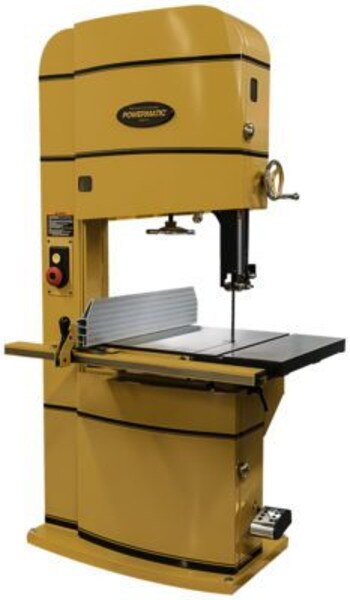

Powermatic 1791260B PM2415B-3, 24" Bandsaw, 5HP 3PH 230/460V
Features- Exclusive Powermatic T-Square style Accu-Fence? maximizes accuracy and safety
- The Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Positive locking cam with pressure adjustment
- Oversized side plate can be used in the horizontal or vertical position
- Solid steel resaw post for optimum rigidity
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending)
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Height: 87.5
- Length: 45
- Weight: 1067
- Volume: 75.765
- Width: 33.25
- Prewired Voltage (V.): 230
- Motor Current (Amps): 15/7.5
- Motor Power (HP): 5
- Blade Length (in): 183
- Maximum Saw Blade Width (in): 1-1/2
- Table Height from Floor (In.): 35
- Cutting Capacity Height (in): 15
- Dust Port Outside Diameter (in): 4
- Table Tilt (Deg.): 10 Left, 45 Right
- Blade Speed (SFPM): 2500/4800
- Minimum Saw Blade Width (in): 1/4
- Table Size (L x W) (In.): 24 x 34
- Dust Collection Minimum CFM Required (CFM): 600
- Miter Gauge Positive Stops: 45, 90
- Motor Voltage (V.): 230/460
- Cutting Capacity Width (in): 24
- Motor Phase: 3
Powermatic 1791260B PM2415B 24in Bandsaw 5HP 3PH 230-460V
