Item:1791078K, 1.75HP DUST COLLECTOR VORTEX W/BAG 30 MICRON VORTEX

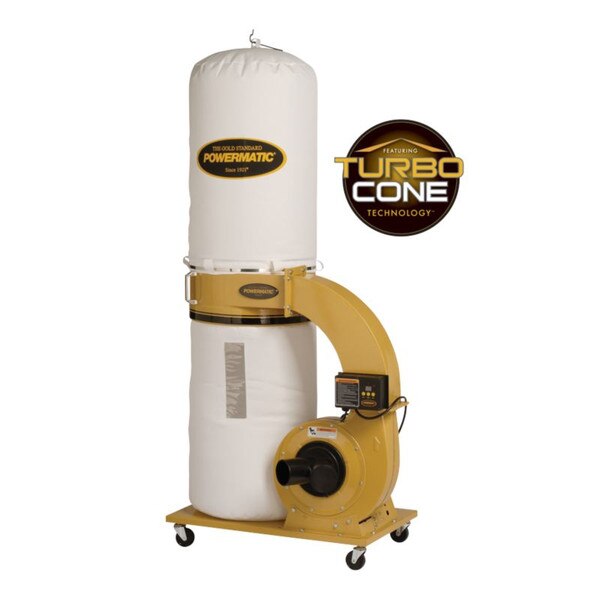

Powermatic 1791078K PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit
\t\t\tFeatures- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- All-metal duct construction for rigidity and improved air flow
- Dual 4 dust ports for simultaneous collection from two machines
- 1-3/4HP motor offers plenty of power for effective air movement
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- 10 cubic feet capacity collection bag reduces number of bag changes.
- Tall filter bag requires less cleaning due to the larger surface area
- Four swivel casters for easy maneuverability
- Height: 23
- Length: 45
- Weight: 138
- Volume: 13.776
- Width: 23
- Motor Voltage (V.): 115/230
- Impeller Diameter (In.): 12
- Prewired Voltage (V.): 115
- Impeller Fins: 6
- Recommended Circuit Size (Amps.): 20/15
- Motor Current (Amps): 15/7.5
- Static Pressure (WC): 11.31
- Filter Bag/Canister Length (In.): 48
- Number of Air Inlets: 1(6) or 2(4)
- 1-Hose Connection Diameter (In.): 6
- Motor Phase: 1
- Motor Power (HP): 1-3/4
- 2-Hoses Connection Diameter (In.): 4
- Air Flow @ 6 (CFM): 1,064
- Sound Rating (DB): 75 - 90
- Efficiency (Micron): 30
- Collection Bag Capacity (Cu. Ft.): 10
- Bag Diameter (In.): 20
- Collection Bag Length (In.): 30
- Impeller Material: Steel
- Velocity @ 6 (FPM): 5,374
