Item:1790812K, PF-41 1HP 1PH 110V 4-SPEED POWER FEEDER 4-WHEEL

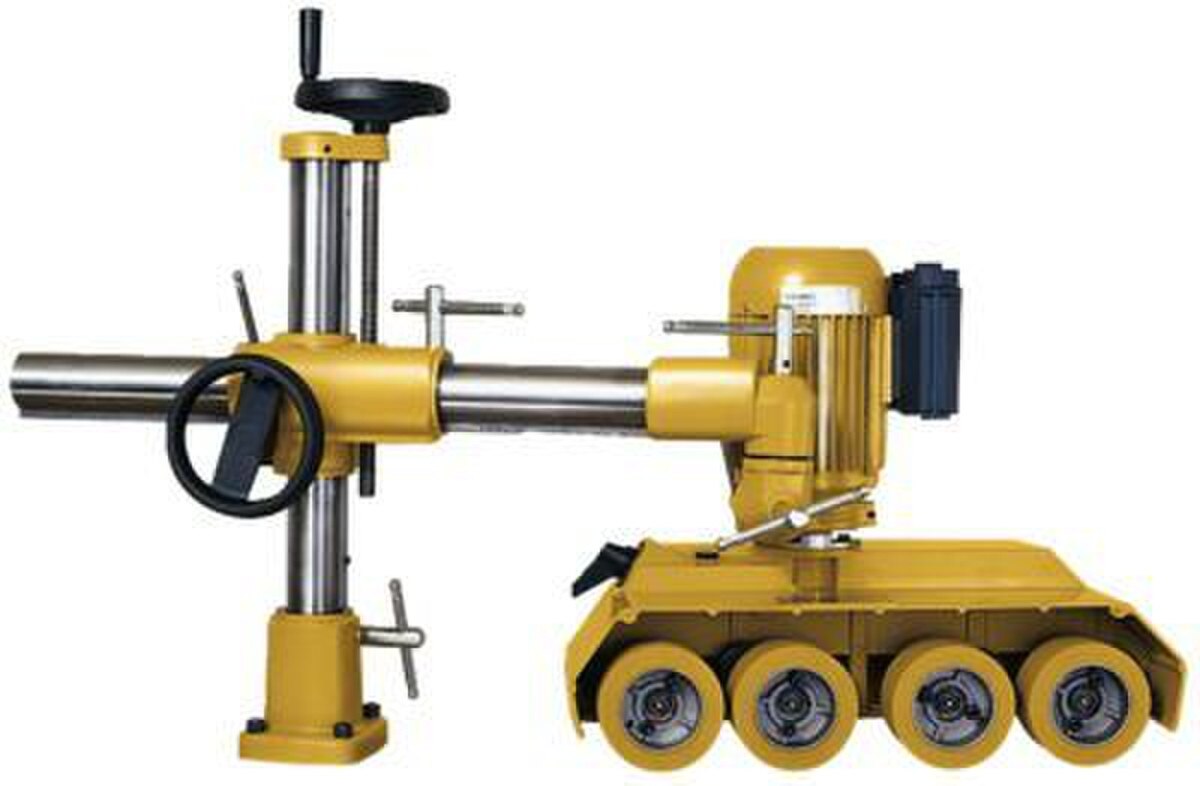

Powermatic 1790812K PF-41 Feeder, 1HP 1PH 115V, 4 Speed

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly

• Height: 29.48
• Length: 43.23
• Weight: 158
• Volume: 17.391
• Width: 23.58
• Maximum Height of Rollers Parallel to Tabletop (In.): 8.45
• Movement - Vertical (In.): 9.83
• Swing (Deg.): 360
• Motor Phase: 1
• Motor Voltage (V.): 115 only
• Distance Between Rollers - Center to Center (In.): 5.23 - 5.93 - 5.00
• Movement - Horizontal (In.): 18.07
• Rotation: Forward/Reverse
• Motor Power (HP): 1
• Number of Speeds: 4 Speeds
• Range of Speeds: 13, 36, 43, 108
• Number of Rollers: 4
• Column Diameter (In.): 2.28
