Item:1790810K, PF-33 1HP 3PH 460V 4-SPEED POWER FEEDER 3-WHEEL

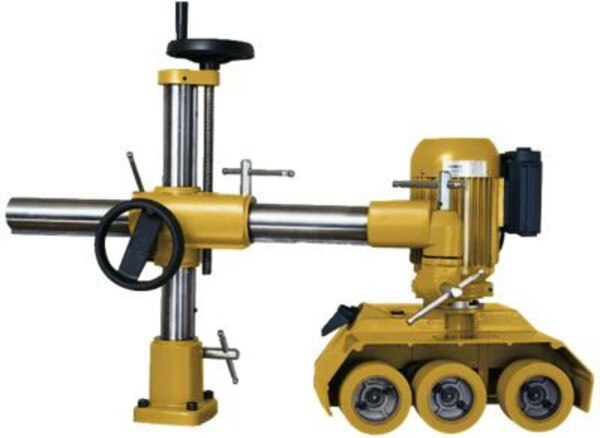

Powermatic 1790810K PF-33 Feeder, 1HP 3PH 460V, 4 Speed

• Roller chain and sprockets provide positive feeding for a variety of work
• Support column is fully adjustable for horizontal, vertical or angled feeder position
• Feeder body, column base and joints are cast iron for heavy duty operation
• Rollers can be changed out easily and quickly

• Height: 29.5
• Length: 43.23
• Weight: 143
• Volume: 13.343
• Width: 18.08
• Maximum Height of Rollers Parallel to Tabletop (In.): 8.45
• Movement - Vertical (In.): 9.75
• Swing (Deg.): 360
• Motor Phase: 3
• Motor Voltage (V.): 460 only
• Distance Between Rollers - Center to Center (In.): 5.07 - 5.90
• Movement - Horizontal (In.): 18.07
• Rotation: Forward/Reverse
• Motor Power (HP): 1
• Number of Speeds: 4 Speeds
• Number of Rollers: 3
• Column Diameter (In.): 2.28
