Item:1790807K, MODEL PF-31, 1HP, 1PH, 115V, 4

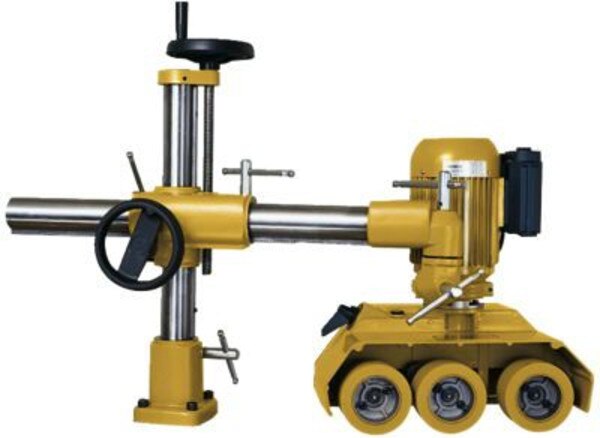

Powermatic 1790807K PF-31 Feeder, 1HP 1PH 115V, 4 Speed
\t\t\tFeatures- Roller chain and sprockets provide positive feeding for a variety of work
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Feeder body, column base and joints are cast iron for heavy duty operation
- Rollers can be changed out easily and quickly
- Height: 29.5
- Length: 43.23
- Weight: 143
- Volume: 13.343
- Width: 18.08
- Maximum Height of Rollers Parallel to Tabletop (In.): 8.45
- Movement - Vertical (In.): 9.75
- Swing (Deg.): 360
- Motor Phase: 1
- Motor Voltage (V.): 115
- Distance Between Rollers - Center to Center (In.): 5.07 - 5.90
- Movement - Horizontal (In.): 18.07
- Rotation: Forward/Reverse
- Motor Power (HP): 1
- Number of Speeds: 4 Speeds
- Number of Rollers: 3
- Column Diameter (In.): 2.28
