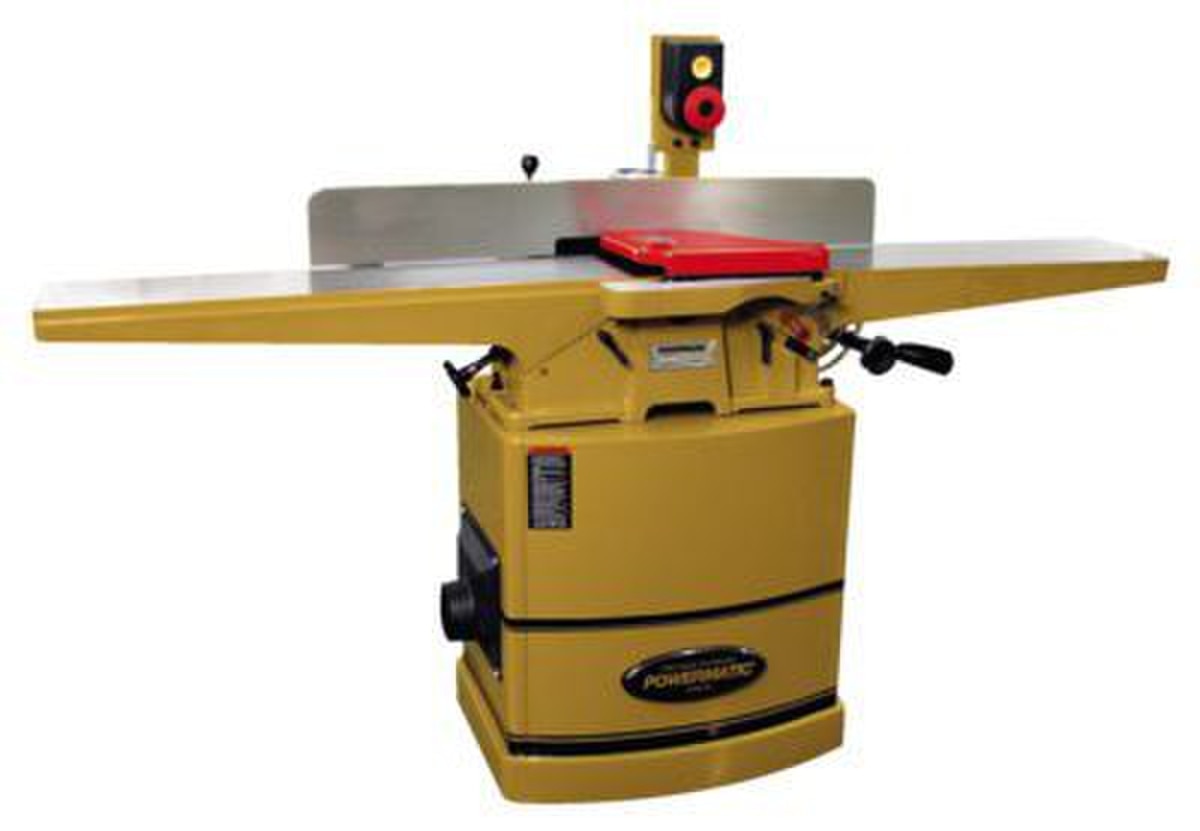

Item:1610084K, 60C 8" LONG BED JOINER 2HP 230V DOVETAILED WAYS

Powermatic 1610084K 60C 8" Jointer, 2HP 1PH 230V

• High-speed heat-treated steel knives
• Extra long tables are mounted on dovetailed ways, for extended workpiece support
• Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
• High mount switch for operator convenience
• Handwheel operated worm gear system for smooth fence tilting
• Magnetic push blocks can be stored on the machine within constant reach
• Non-mar fence insert protects table surface
• Large extension rest on infeed table for rabbeting

• Height: 46
• Length: 25
• Weight: 518
• Volume: 48.582
• Width: 73
• Rabbeting Capacity (In.): 1/2
• Table Size (L x W) (In.): 73 x 8-1/2
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 2
• Cutterhead Speed (RPM): 7,000
• Fence Positive Stops (Deg.): 45, 90, -45
• Cutterhead Diameter (In.): 3
• Outfeed Table Length (In.): 35-1/2
• Motor Voltage (V.): 230 only
• Dust Collection Minimum CFM Required (CFM): 600
• Cutting Capacity (W x D) (In.): 8 x 1/2
• Motor Phase: 1
• Number of Knives: 3
• Cuts Per Minute: 21,000
• Recommended Circuit Size (Amps.): 20
• Fence Tilt (Deg.): 45 Forward, 45 Backward
• Motor Current (Amps): 9
• Standard Knife Size (L x W x T) (In.): 8 x 11/16 x 1/8
• Fence Size (L x H) (In.): 38 x 4-3/4
• Table Height from Floor (In.): 32
• Infeed Table Length (In.): 35-1/4
