Item:1610082, PJ-882HH, 8" PARALLELOGRAM JOI

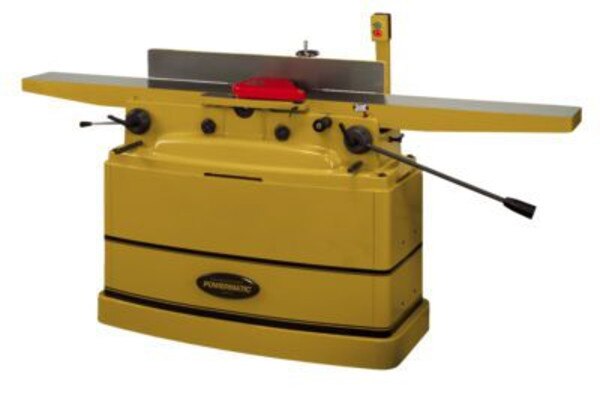

Powermatic 1610082 PJ-882HH Jointer, 2HP 1PH 230V
\t\t\t Features- Helical cutterhead with 4-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Extra long 82 table for expanded work support
- Parallelogram design helps maintain table parallelism and eases table raising and lowering
- Handwheel with worm gear system for precise fence tilting (Patented)
- 1/8 depth of cut limiter for fast table positioning
- High-mount switch for operator convenience
- No-mar fence insert protects table
- Height: 44
- Length: 84
- Weight: 744
- Volume: 59.889
- Width: 28
- Rabbeting Capacity (In.): NA
- Table Size (L x W) (In.): 82 x 8
- Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5
- Dust Port Outside Diameter (In.): 4
- Motor Power (HP): 2
- Cutterhead Speed (RPM): 7,000
- Fence Positive Stops (Deg.): 45, 90, -45
- Cutterhead Diameter (In.): 3-1/16
- Outfeed Table Length (In.): 38
- Motor Voltage (V.): 230 only
- Dust Collection Minimum CFM Required (CFM): 450
- Cutting Capacity (W x D) (In.): 8 x 1/2
- Motor Phase: 1
- Number of Knives: 54
- Recommended Circuit Size (Amps.): 20
- Fence Tilt (Deg.): 45 Forward, 45 Backward
- Motor Current (Amps): 9
- Fence Size (L x H) (In.): 44-3/4 x 38-3/16
- Table Height from Floor (In.): 31-5/16
- Infeed Table Length (In.): 44
