Item:1280102C, PM2700 5HP/3PH 230 VOLT 1-1/4 & 3/4" SPINDLE

(0)No Reviews yet
$4,899.99
SKU: 5171280102C

Out of Stock

This item is ON BACK ORDER

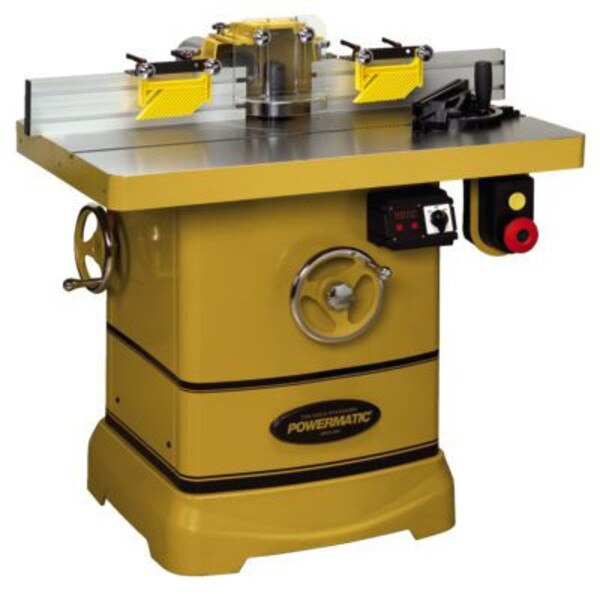

Powermatic 1280102C PM2700 Shaper, 5HP 3PH 230/460V

\t\t\t

Features
  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy duty 30 x 40 precision ground tabletop for smooth stock feeding
  • Convenient quick lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 5HP totally enclosed motor offers plenty of power
  • Two spindle speeds (reversible) for a variety of work
  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table predrilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding
Specifications
  • Height: 45
  • Length: 40
  • Weight: 690
  • Volume: 38.542
  • Width: 37
  • Electrical Controls: Yes
  • Table Inserts (In.): 2.55, 4.16, 5.75
  • Reversible: Yes
  • Spindle Size Under Nut (In.): 3/4 (3.42), 1-1/4 (5.15)
  • Recommended Circuit Size (Amps.): 20/10
  • Table Travel (In.): N.A.
  • Wiring Remarks: Requires 460V Magnetic Switch
  • Table Opening Diameter (In.): 7.33
  • Motor Phase: 3
  • Dust Collection Minimum CFM Required (CFM): 600
  • Fence Travel (Major and Minor) (In.): N.A.
  • Spindle Speed (RPM): 7,500, 10,000
  • Motor Voltage (V.): 230/460
  • Table Size (In.): 40 x 30
  • Fence Size (L x H) (In.): 18-3/4 x 4-7/8
  • Dust Port Outside Diameter (In.): 4
  • Motor Current (Amps): 13/6.5
  • Maximum Spindle Diameter (In.): 1-1/4
  • Style (Type): Shaper
  • Spindle Tilt (Deg.): N.A.
  • Spindle Travel (In.): 4
  • Digital Readouts: Spindle Height
  • Prewired Voltage (V.): 230
  • Sliding Table Size (In.): N.A.
  • Motor Power (HP): 5
  • Table Height from Floor (In.): 35-1/2
Powermatic 1280102C PM2700 Shaper 5HP 3PH 230-460V
