Item:1280101C, PM2700 5HP SHAPER 230 VOLT 1-1/4 & 3/4" SPINDLE

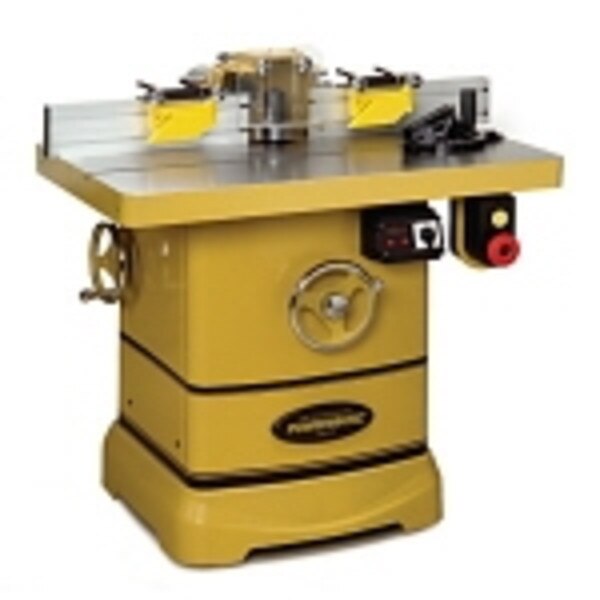

Powermatic 1280101C PM2700 Shaper, 5HP 1PH 230V
\t\t\tFeatures- Integrated caster system built into the cast iron base for instant shop mobility
- Spindle height digital readout for making fine incremental adjustments on multiple passes
- Heavy duty 30 x 40 precision ground tabletop for smooth stock feeding
- Convenient quick lock belt tensioning for easy speed adjustment
- Industrial fence system with fine adjust dials for more precise positioning
- 5HP totally enclosed motor offers plenty of power
- Two spindle speeds (reversible) for a variety of work
- Superior clear cutter guard promotes safety, allows observation of the entire cut
- Table predrilled and tapped for feeder mounting in two locations
- Fence has dual featherboards for work holding
- Height: 45
- Length: 40
- Weight: 769
- Volume: 38.542
- Width: 37
- Electrical Controls: Yes
- Table Inserts (In.): 2.55, 4.16, 5.75
- Reversible: Yes
- Spindle Size Under Nut (In.): 3/4 (3.42), 1-1/4 (5.15)
- Recommended Circuit Size (Amps.): 40
- Table Travel (In.): N.A.
- Table Opening Diameter (In.): 7.33
- Motor Phase: 1
- Dust Collection Minimum CFM Required (CFM): 600
- Fence Travel (Major and Minor) (In.): N.A.
- Spindle Speed (RPM): 7,500, 10,000
- Motor Voltage (V.): 230 only
- Table Size (In.): 40 x 30
- Fence Size (L x H) (In.): 18-3/4 x 4-7/8
- Dust Port Outside Diameter (In.): 4
- Motor Current (Amps): 22
- Maximum Spindle Diameter (In.): 1-1/4
- Style (Type): Shaper
- Spindle Tilt (Deg.): N.A.
- Spindle Travel (In.): 4
- Digital Readouts: Spindle Height
- Spindles Included: 3/4 & 1-1/4
- Sliding Table Size (In.): N.A.
- Motor Power (HP): 5
- Table Height from Floor (In.): 35-1/2
