Item:U59381, HINGE BUTT TEMP KIT
Porter Cable Professional Power Tools 59381 Hinge Butt Template Kit

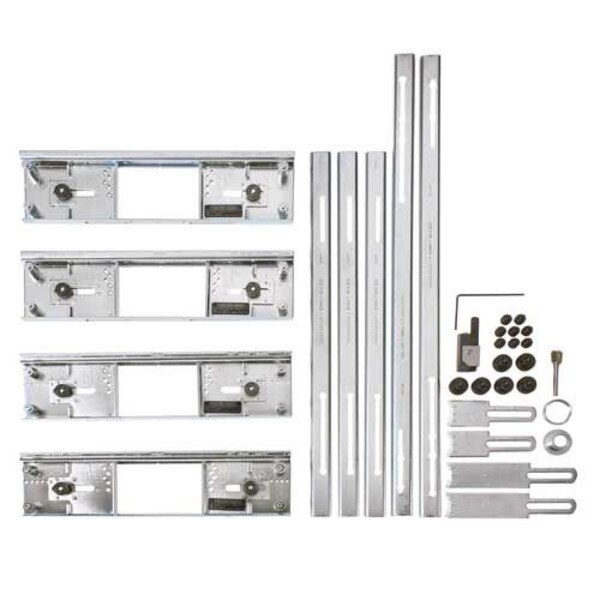

The 59381 includes 4 metal hinge templates, 3 short steel rails, 2 long steel rails, Carbide-tipped router bit, Template Guide, Lock Nut, Corner Chisel, 2 Pairs of end gages, 8 Small thumb screws, 6 large thumb screws, Hex key, Instruction sheet, Carrying case.
- Offers a quick, simple and accurate solution when hanging multiple doors.
- Provides the capacity to hang both 3 and 4 hinge doors.
- 3 hinge template set up enables the routing of hinges on doors and frames between 6' and 7' in height.
- 4 hinge template set up enables the routing of hinges on doors and frames between 7' and 8' in height.
- Accommodates hinge sizes from 3" to 6", in 1/2" increments.
- Accommodates doors of various thickness: 1-3/8", 1-3/4", 2", 2-1/4", and 2-1/2".
- Corner chisel accommodates square hinge corners.
- End gages enable the simple setting of the distance from template to top and bottom of door.
- Carbide-tipped router bit and template guide included for 1/4" radius hinges.
- 5/8" and 5/16" radius hinge corners can be accommodated with the use of bits and template guides (sold separately).
- All metal construction provides long term durability.
The 59381 includes 4 metal hinge templates, 3 short steel rails, 2 long steel rails, Carbide-tipped router bit.
