Item:5477NB, 7-1/4" HYPOID SAW WITH TOOL BAG

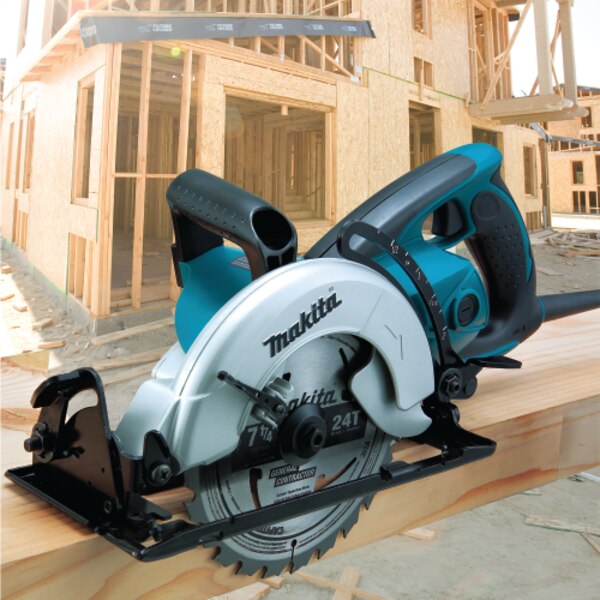

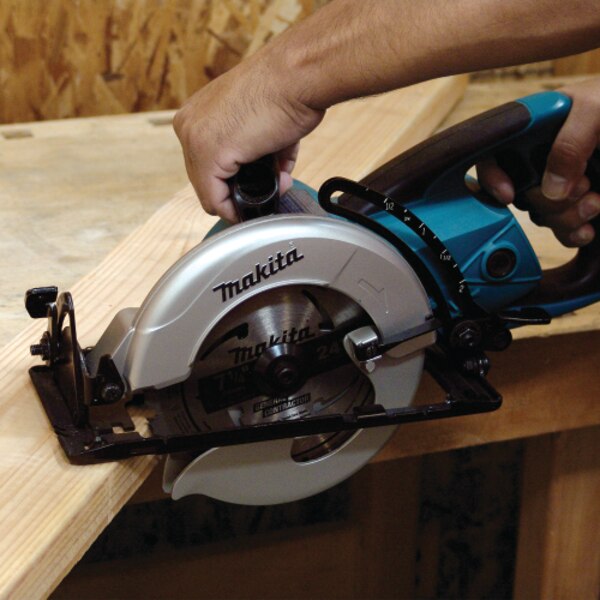

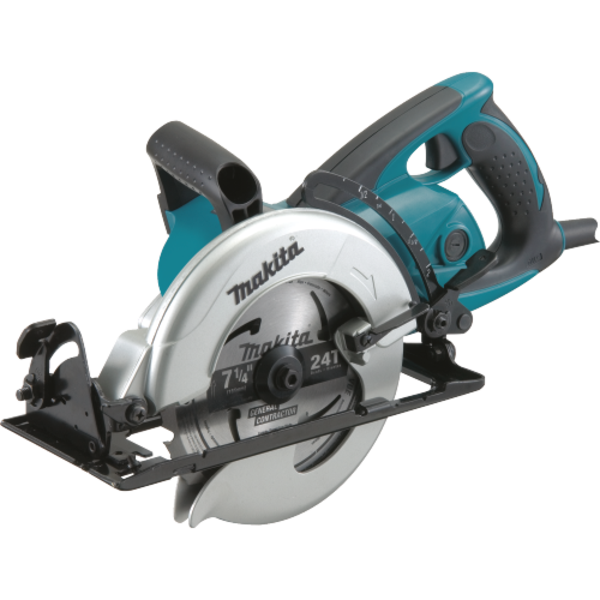

Makita 5477NB 7-1/4" Hypoid Saw
Heat-Treated Hypoid Gears are Designed for Less Maintenance
Features
- Hypoid gears deliver more power and have greater surface contact than conventional worm drive gears
- Powerful 15 AMP motor for increased productivity
- Oil bath technology and sealed gear housing for less maintenance
- 0°-51.5° bevel capacity with positive stops at 45° and 51.5° is ideal for truss and rafter cut-outs
- High quality, heat treated hypoid gears are engineered for long lasting performance
- Large cutting capacity (2-3/8" at 90°; 1-3/4" at 45° and 1-9/16" at 50°)
- Lower guard design improves performance when making bevel and narrow cuts
- Oversized top handle for better fit and added comfort
- Large levers for fast bevel and depth adjustments
- Push button spindle lock for easy blade changes
- Blade wrench is attached to the saw for fast and convenient blade changing
- Ergonomically designed rubberized grip for improved control
- Base plate is chemically treated to resist rust and warping for superior cuts
- Reinforced 10 ft. cord withstands jobsite abuse
- Large and easy to read markings on depth and bevel scales
- Externally accessible brushes for easy replacement and extended tool life
- 24T thin kerf carbide tipped blade for fast cutting
- Ideal for framers, builders, masons and contractors
- (1) 7-1/4" 24T Framing Blade, General Contractor (D-45989-1)
- (1) Wrench (783204-6)
Model No. | 5477NB |
Blade Diameter | 7-1/4" |
Arbor | 5/8" |
Max. Cutting Capacity (at 90°) | 2-3/8" |
Max. Cutting Capacity (at 45°) | 1-3/4" |
Max. Cutting Capacity (at 50°) | 1-9/16" |
No Load Speed | 4,500 RPM |
Watts Out | 2,300 |
Amps | 15 |
Overall Length | 17-3/8" |
Net Weight | 14.3 lbs. |
Shipping Weight | 18.07 lbs. |
UPC Code | 088381096133 |
Makita 5477NB 7-1/4" Hypoid Saw.
