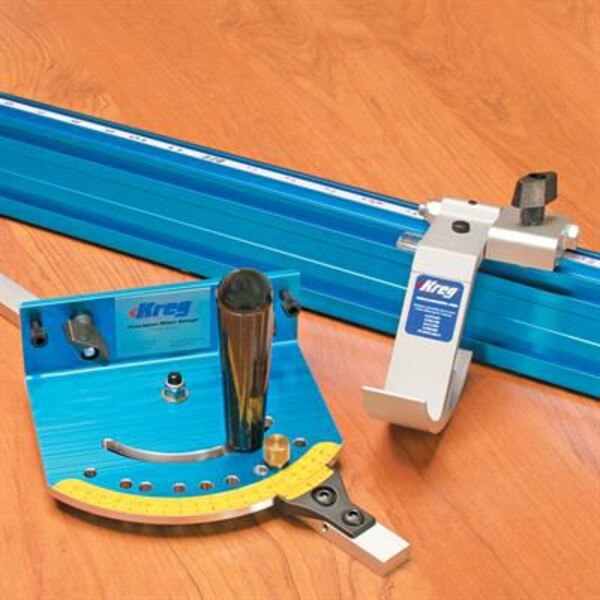

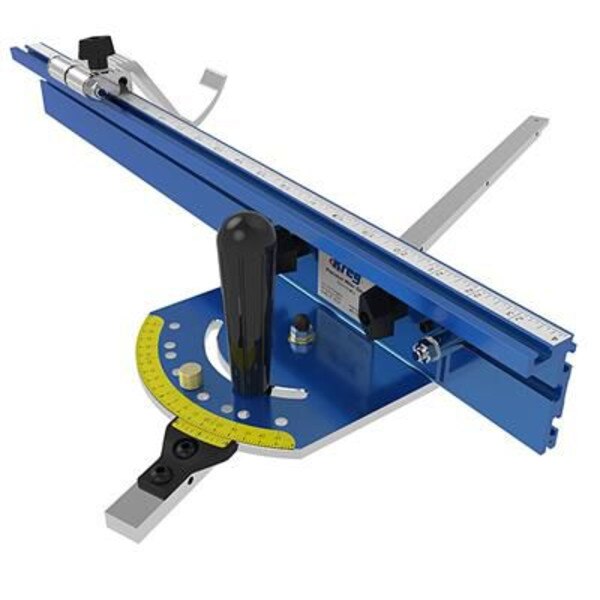

Kreg KMS7102 Precision Miter Gauge System

Why spend your time calibrating a miter gauge when you can get amazing accuracy right out of the box? Our Precision Miter Gauge System requires no calibrating, and features positive stops at 0°, 10°, 22½°, 30° and 45° to make it easy to cut accurate miters quickly.

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree.

Plus, the Precision Miter Gauge System offers a long, anodized-aluminum fence and stop system that let you easily make accurate, repeatable cuts.

Perfect Miters, Fast!
Precision is the name of the game for this CNC-milled miter gauge. We worked build accuracy into every feature of this product from the rugged aluminum fence, to the solid yet versatile Swing Stop to the easy-to-use yet amazingly accurate Vernier scale. With all of its great features, this miter gauge will give you better, more accurate cuts to ensure project success.

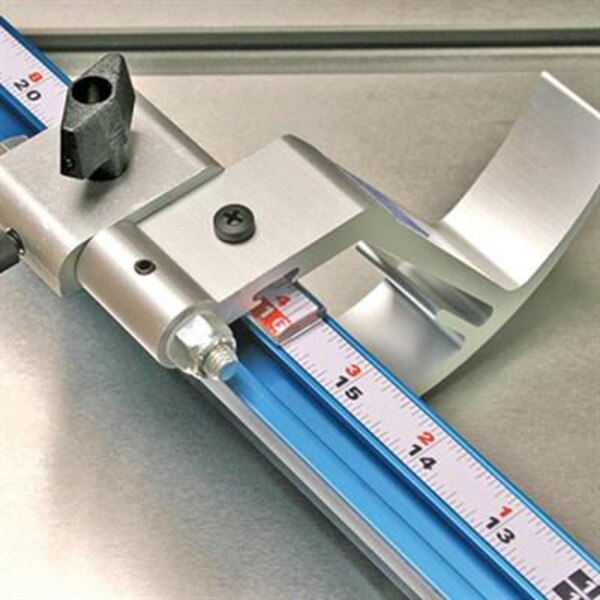

Precision Lens Cursor
Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibility red line that makes it easy to set the Swing Stop for precise cuts, time after time.

No Play in the Miter Slot
Our extremely straight 24" (610mm) anodized-aluminum bar is 3/8" (9.5mm) thick by 3/4" (19mm) wide, and features five bar adjusters that you can use to eliminate “play” in the miter slot with the turn of a screw driver.

Swing Stop
The Swing Stop slides effortlessly along the fence of the Precision Miter Gauge and locks securely into place with the turn of a knob. It also features a curved foot that lets you easily swing the stop temporarily out of the way without having to remove it. That means you can quickly square one end of a board, flip it around, and then cut it to final length without ever moving the stop.

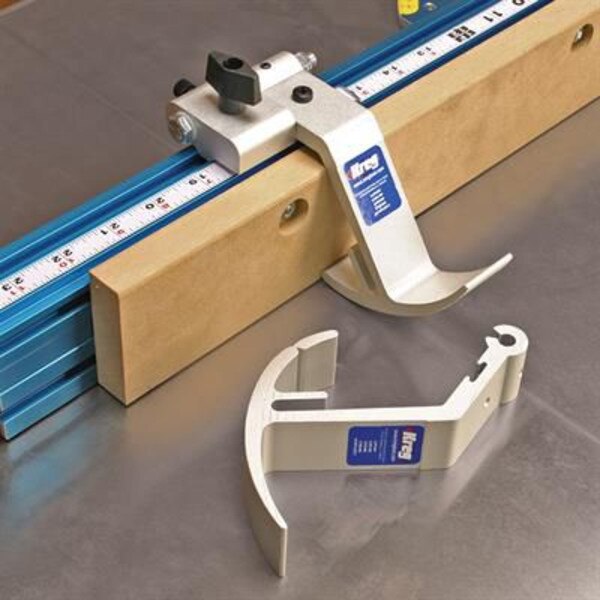

Add a Versatile Fence
The curved foot of the Swing Stop can be used as ’s “break-away” design allows you to add a versatile, heavy-duty fence to your Miter Gauge.


  • Factory-calibrated; perfect right out of the box
  • Positive stops at 0°, 10°, 22-1/2°, 30°, and 45°
  • Brass pin allows quick changes between positive stop angles
  • 24" (610mm) bar with 5 bar adjusters eliminates "play" between the bar and miter slot
  • 24" (610mm) Fence with Swing Stop and Self-Adhesive Measuring Tape
Item No.KMS7102
Fence24" (610mm) aircraft-grade aluminum fence
T-Slot Bar24" (610mm) long
3/8" (9.5mm) thick
3/4" (19mm) wide
Positive Stops0°, 10°, 22-1/2°, 30°, and 45°
Vernier ScaleAdjusts to 1/10th of a degree
FinishAnodized for easy clean-up
CalibrationFactory-calibrated; perfect right out of the box
Weight6.5 lbs.
IncludesMiter Gauge, 24" (610mm) Fence with scale, zero-return stop, Swing Stop with Precision Lens Cursor, self-adhesive measuring tape and owner's manual
