Item:722155, JWP-15BHH 15" PLANER, HELICAL

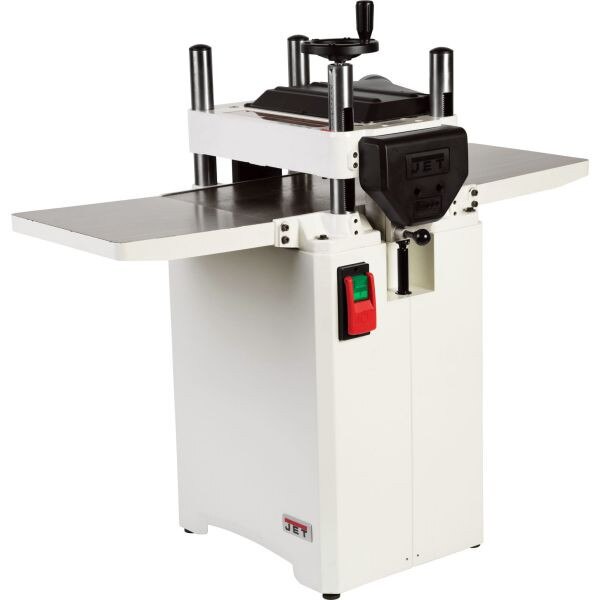

Jet 722155 Jet JWP-15BHH 15" Planer w/ Helical Head
The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8-inch material with each pass for a smooth finish. A large Precision cast-iron table and infeed/outfeed tables make this planer a beautiful addition to the shop. Add knowledgeable customer service professionals standing by if you need them, and you’re good to go.
Mobile Base 708118
Replacement Knives 1791212
The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8-inch material with each pass for a smooth finish. A large Precision cast-iron table and infeed/outfeed tables make this planer a beautiful addition to the shop. Add knowledgeable customer service professionals standing by if you need them, and you’re good to go.
- Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

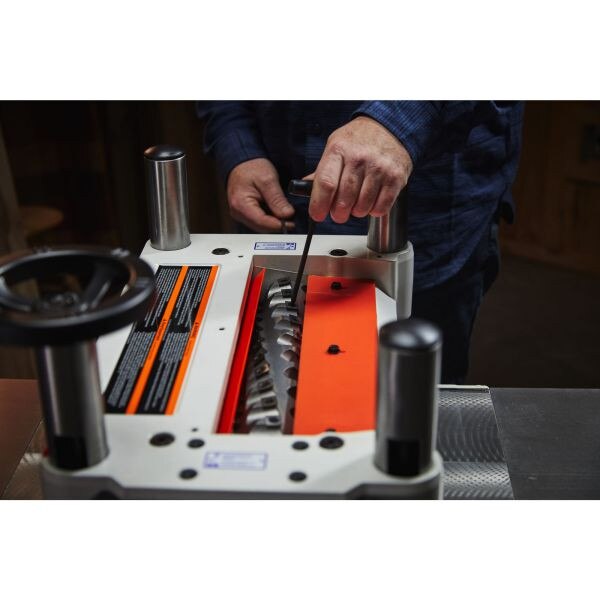

- Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16 fpm or 20 fpm, maximizes cut efficiency
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
- Large cast Iron precision ground infeed/outfeed tables provide support for large work pieces
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

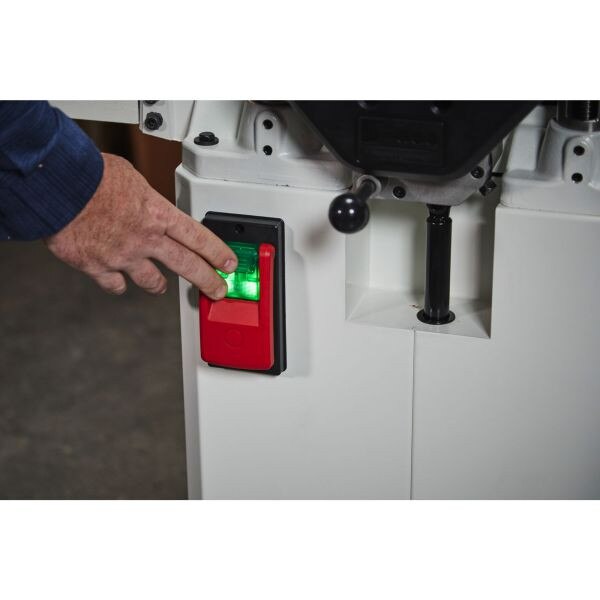

- Magnetic Switch with green safety light illuminates when powered
- 5 Year Warranty
- 4" Dust Port hooks up to dust management system and helps keep shop clean
- Cutterhead Speed 5,200
- Feed Rate 16 or 20 FPM
- Maximum Depth of Cut (In.) 1/8"
- Dust Collection Minimum CFM Required (CFM) 600
- Number of Knives 48
- Maximum Planing Thickness (In.) 6"
- Cutterhead Diameter (In.) 2-5/8"
- Minimum Planing Length (In.) 21-1/2"
- Motor Voltage 230v
- Motor Amperage 15a
Mobile Base 708118
Replacement Knives 1791212
