Item:722150, JWP-15B 15" PLANER STRAIGHT KNIFE

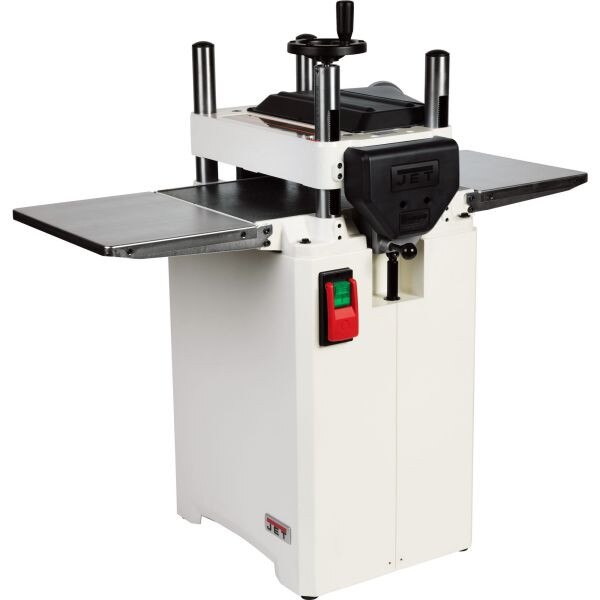

Jet 722150 JWP-15B 15" Planer w/Straight Knives
For projects that require board thickness to be beyond exact, the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET’s angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop’s dust collection system.
5 Year Warranty
Mobile Base 708118
Replacement Blade SKU 708807
For projects that require board thickness to be beyond exact, the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET’s angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop’s dust collection system.
- Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
- Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16 fpm or 20 fpm, maximizes cut efficiency
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity

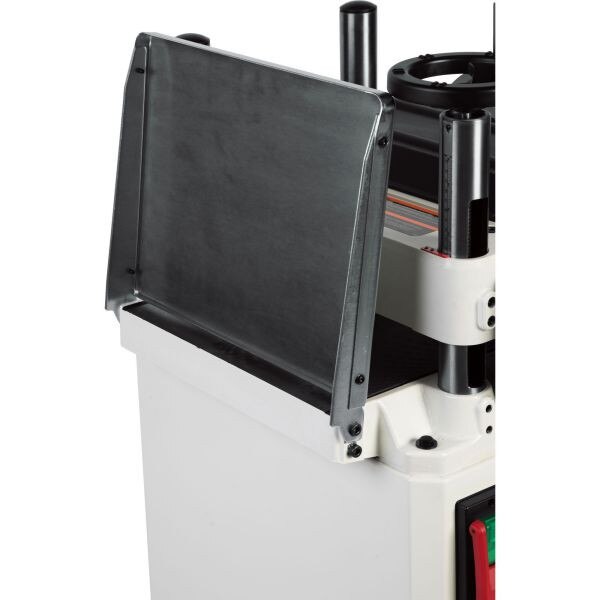

- Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness
- Magnetic Switch with green safety light illuminates when powered

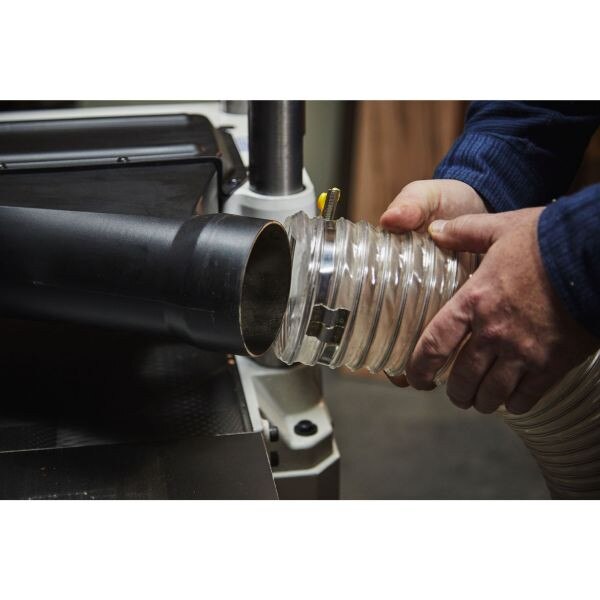

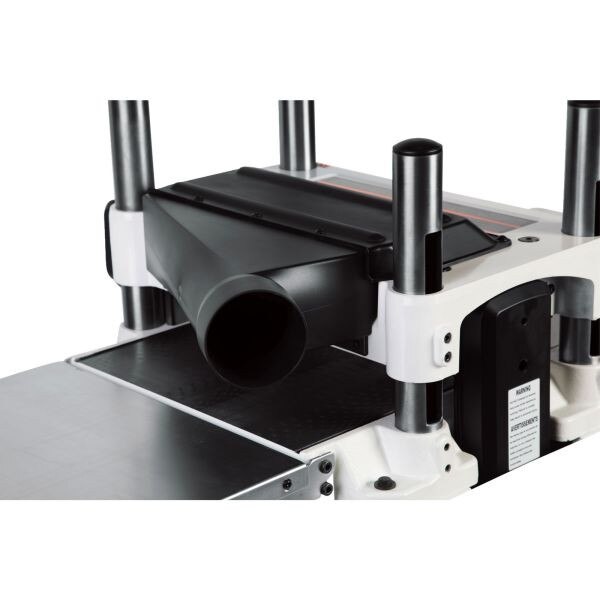

- 4" Dust Port hooks up to dust management system and helps keep shop clean
- Cutterhead Speed (RPM) 5200 RPM
- Maximum Depth of Cut (In.) 3/16"
- Feed Rate (FPM) 16 and 20 FPM
- Motor Power (HP) 3 HP
- Motor Voltage 230 Volt
- Motor Amperage 15
- Dust Collection Minimum CFM Required (CFM) 600 CFM
- Number of Knives 3
- Maximum Planing Thickness (In.) 6"
- Cutterhead Diameter (In.) 2-5/8"
- Minimum Planing Length (In.) 21-1/2"
- Maximum Full Width Depth of Cut (In.) 1/8"
5 Year Warranty
Mobile Base 708118
Replacement Blade SKU 708807
Jet 722150 JWP-15B 15" Planer w/Straight Knives
