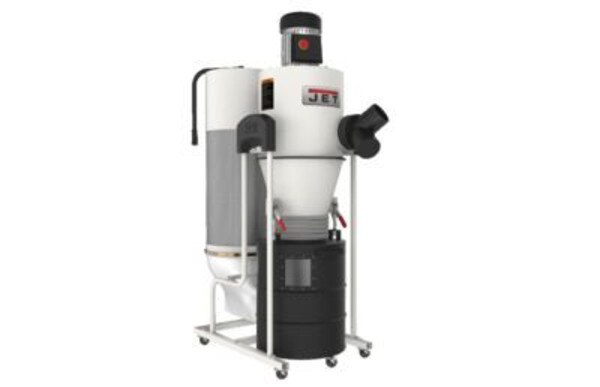

Item:717515, JCDC-1.5 CYCLONE DUST COLLECTOR

Jet Woodworking 717515 JCDC-1.5 Cyclone Dust Collector, 1.5HP, 115V

• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

• Height: 33.5
• Length: 43.75
• Weight: 175
• Volume: 17.245
• Width: 23.25
• Prewired Voltage (V.): 115
• Motor Power (HP): 1.5
• 1-Hose Connection Diameter (In.): 6
• Filter Efficiency (Micron): 1
• Impeller Diameter (In.): 13
• Motor Voltage (V.): 115
• Recommended Circuit Size (Amps.): 20A
• Impeller Fins: Radial
• Motor Phase (PH): 1
• Impeller Material: Steel
• Number of Air Inlets: 1 at 6", 2 at 4"
• Sound Rating (Db.): 75
• 2-Hoses Connection Diameter (In.): 4
• Motor Amps: 14
• Collection Drum Capacity (gal.): 20
• Max. Static Pressure (Wc.): 8.268
• Drum Collection Bag (Dia. x L/In.): 26 x 27-9/16
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Canister Filter Diameter (In.): 14-9/16
• Canister Filter Length (In.): 15-3/4
• Assembled Dimensions (L x W x H/In.): 22 x 47 x 67-9/16
• Footprint (L x W/In.): 47 x 22
• Motor Speed (RPM): 3450
• Efficiency (Micron): 99% of 2 micron particles
• MERV Value: 13
• Air Flow (US Method) @ 6" (CFM): 763
• Air Flow (EU Method) @ 6" (CFM): 1,259
• Air Velocity (US Method) @ 6" (FPM): 3,877
