Item:710703K, DC-1200VX-BK3 Dust Collector,

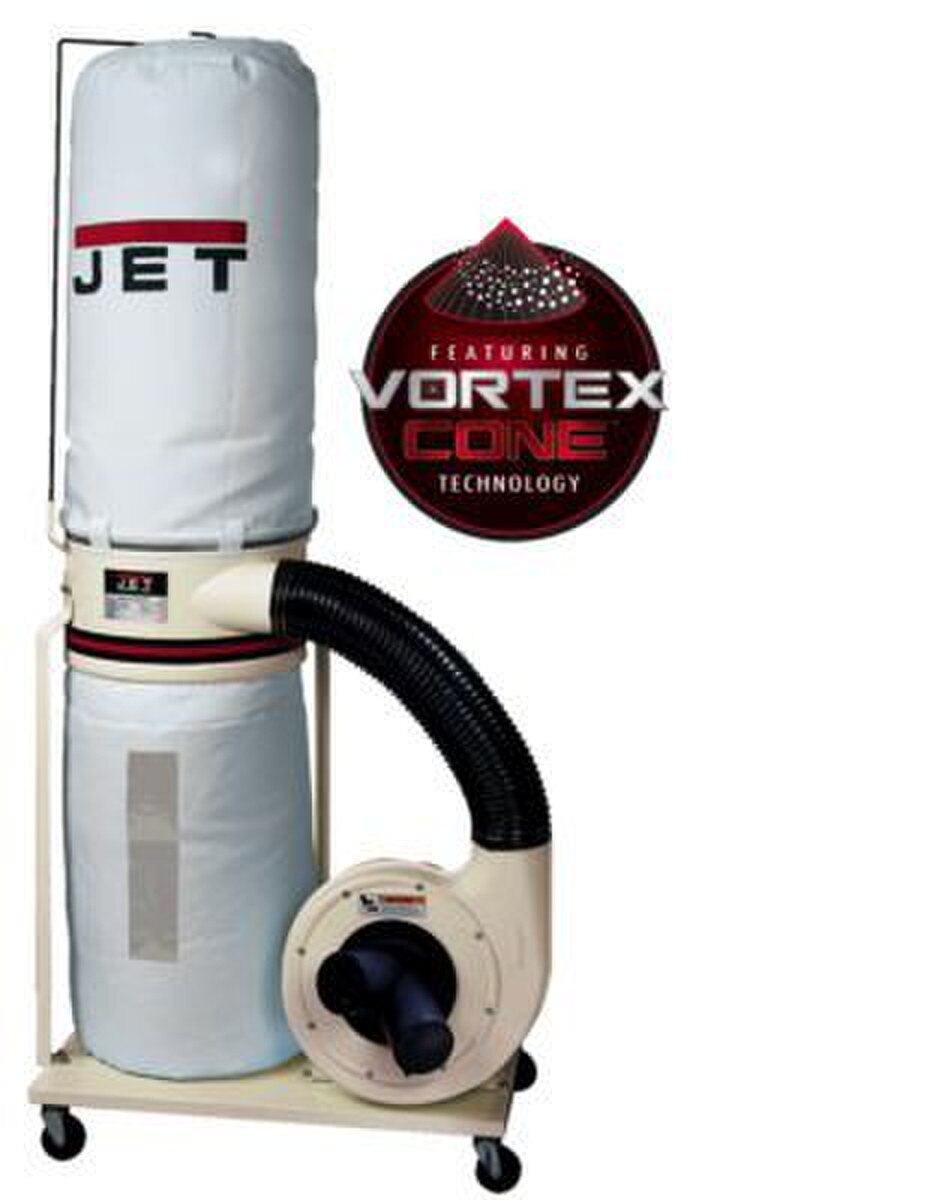

Jet Woodworking 710703K DC-1200VX-BK3 Dust Collector, 2HP 3PH 230/460V, 30-Micron Bag Filter Kit

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

• Height: 22
• Length: 37.5
• Weight: 150
• Volume: 10.742
• Width: 22.5
• Style (Type): Bag
• Prewired Voltage (V.): 230
• Motor Power (HP): 2
• 1-Hose Connection Diameter (In.): 6
• Collection Bag Length (In.): 29
• Filter Bag/Canister Length (In.): 32
• Impeller Diameter (In.): 12
• Motor Voltage (V.): 230/460
• Motor Phase (PH): 3
• Collection Bag Capacity (Cu. Ft.): 40301
• Impeller Material: Steel
• Number of Air Inlets: 1 at 6", 2 at 4"
• Sound Rating (Db.): 80 - 85
• Bag Diameter (In.): 20
• 2-Hoses Connection Diameter (In.): 4
• Efficiency (Micron): 30
• Air Flow (US Method) @ 4" (CFM): 1199
