Item:708544, JWP-208HH, 20" PLANER 5HP 1PH,

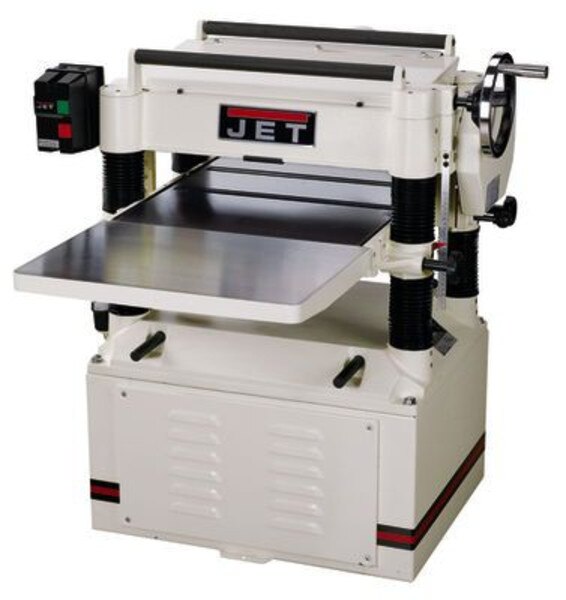

Jet Woodworking 708544 JWP-208HH, 20" Planer 5HP 1Ph, Helical Head

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Heavy-duty cast iron and steel construction for added strength and durability
• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
• Large, cast iron, precision ground table for precise workpiece support
• Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
• Positive gear drive moves table quickly and accurately
• Cast iron infeed and outfeed tables come with the machine
• Large handwheel with positive gear drive allows for quick and accurately table adjustments

• Height: 23
• Length: 44
• Weight: 837
• Volume: 16.398
• Width: 28
• Cutterhead Speed (RPM): 5000
• Feed Rate (FPM): 24/31
• Motor Power (HP): 5
• Dust Collection Minimum CFM Required (CFM): 400
• Number of Speeds: 2
• Number of Knives: 92 Four-Sided Inserts
• Maximum Planing Thickness (In.): 8
• Cutterhead Diameter (In.): 42432
• Motor Amps: 27
• Dust Port Outside Diameter (In.): 5
• Motor Phase (PH): 1
• Prewired Voltage (V.): 230
• Maximum Planing Width (In.): 20
• Minimum Planing Length (In.): 38141
• Motor Voltage (V.): 230
• Style (Type): Planer
• Maximum Full Width Depth of Cut (In.): 11749
• Table Size (L x W) (In.): 25-3/4 x 20
