Item:708476, JJP-12HH 12" PLANER/JOINTER WI

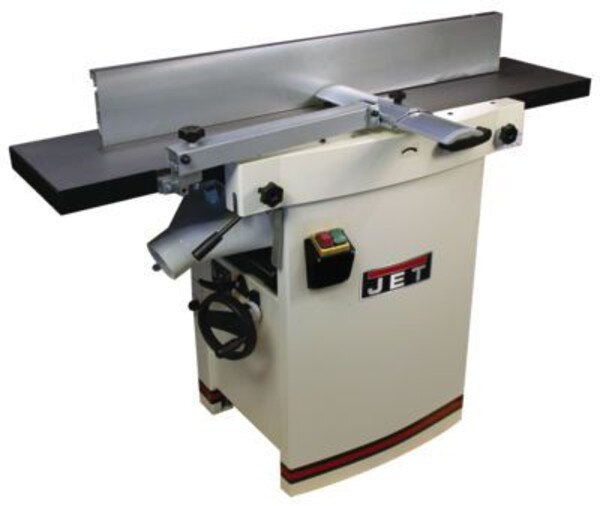

Jet Woodworking 708476 JJP-12HH 12" Planer /Jointer with Helical Head
Features- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
- Extra large aluminum extruded fence with centered controls for quick adjustments
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Built-in dust chute with 4" dust port used for both jointing and planing operations
- Large handwheel for quick and precise adjustments of planer table
- Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
- Magnetic switch provides safer and more reliable operation
- Height: 40
- Length: 55
- Weight: 600
- Volume: 43.287
- Width: 34
- Jointer Cutting Capacity (W x D) (In.): 12 x 1/8
- Jointer Table Size (L x W) (In.): 55 x 12
- Cutterhead Diameter (In.): 38020
- Prewired Voltage (V.): 230
- Fence Positive Stops (Deg.): 90, 45 R
- Helical Knife Size (L x W x T) (In.): 59/100 x 59/100 x 1/100
- Style (Type): Planer/Jointer
- Planer Cutting Capacity (W x D) (In.): 12 x 5/32
- Fence Size (L x H) (In.): 43 x 6
- Planer Table Size (L x W) (In.): 21-1/4 x 12
- Motor Power (HP): 3
- Cutterhead Speed (RPM): 5500
- Dust Port Outside Diameter (In.): 4
- Motor Voltage (V.): 230
- Dust Collection Minimum CFM Required (CFM): 400
- Fence Tilt (Deg.): 90 - 45 R
Jet 708476 JJP-12HH 12in Planer-Jointer with Helical Head
