Item:708475, JJP-12, 12"PLANER/JOINTER COMB

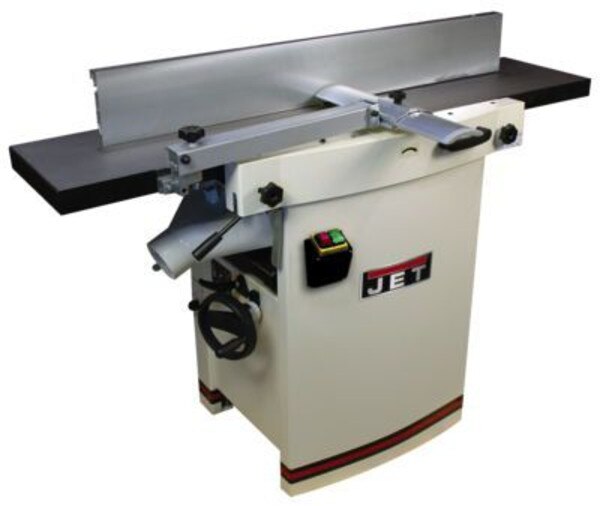

Jet Woodworking 708475 JJP-12, 12" Planer/Jointer 3HP 1PH 230V

• Three high-speed steel knife cutter head provides rapid cutting and a superior finish
• Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
• Extra large aluminum extruded fence with centered controls for quick adjustments
• Extrmemly quick changeover between jointing and planing functions. Fence does not need to be removed
• Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
• Built-in dust chute with 4" dust port used for both jointing and planing operations
• Large handwheel for quick and precise adjustments of planer table
• Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
• Magnetic switch provides safer and more reliable operation

• Height: 40
• Length: 55
• Weight: 600
• Volume: 43.287
• Width: 34
• Jointer Cutting Capacity (W x D) (In.): 12 x 1/8
• Jointer Table Size (L x W) (In.): 55 x 12
• Cutterhead Diameter (In.): 38020
• Prewired Voltage (V.): 230
• Fence Positive Stops (Deg.): 90, 45 R
• Helical Knife Size (L x W x T) (In.): 12 x 1/35 x 1/8
• Style (Type): Planer/Jointer
• Planer Cutting Capacity (W x D) (In.): 12 x 5/32
• Fence Size (L x H) (In.): 43 x 6
• Planer Table Size (L x W) (In.): 21-1/4 x 12
• Motor Power (HP): 3
• Cutterhead Speed (RPM): 5500
• Dust Port Outside Diameter (In.): 4
• Motor Voltage (V.): 230
• Dust Collection Minimum CFM Required (CFM): 400
• Fence Tilt (Deg.): 90 - 45 R
