Item:708326, ***CLOSE OUT***JWS-35X5-1, INDUSTRIAL SHAPER,

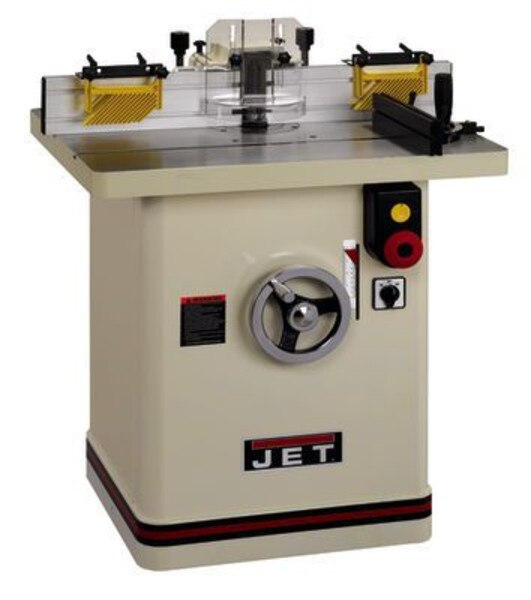

Jet Woodworking 708326 JWS-35X5-1 Industrial Shaper 5HP, 1Ph

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Poly-V-belt transfers maximum power to the spindle
• Large 26-3/4? X 32-1/4? precision ground cast iron table provides a durable work area, predrilled for power feeder
• Spindle height scale
• Starting pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4" Dust port built into fence for convenient hookup to any dust collection system

• Height: 41
• Length: 30
• Weight: 550
• Volume: 28.472
• Width: 40
• Spindle Size Under Nut (In.): 4
• Spindle Speed (RPM): 4000/6000/8000/10000
• Dust Collection Minimum CFM Required (CFM): 600
• Table Opening Diameter (In.): 23547
• Motor Power (HP): 5
• Spindles Included: 1-1/4"
• Motor Phase (PH): 1
• Maximum Spindle Diameter (In.): 37987
• Reversible: Yes
• Maximum Diameter Cutter Below Table (In.): 6
• Table T-Slot (In.): 3/4 x 3/8
• Spindle Travel (In.): 4
• Table Height from Floor (In.): 33-1/4
• Fence Size (L x H) (In.): 16 x 4-3/4
• Electrical Controls: Yes
• Prewired Voltage (V.): 230
• Maximum Diameter Cutter Above Table (In.): 37438
• Motor Voltage (V.): 230
• Dust Port Outside Diameter (In.): 4
• Motor Amps: 17
• Fence Travel (Major and Minor) (In.): 4, 1
• Table Insert Opening Diameter (In.): 2-9/16, 4-5/16
• Table Size (L x W) (In.): 32-1/4 x 26-3/4
• Table Inserts (In.): 2
