Item:708323, 3 HP SHAPER 4 SPEED 230 VOLT

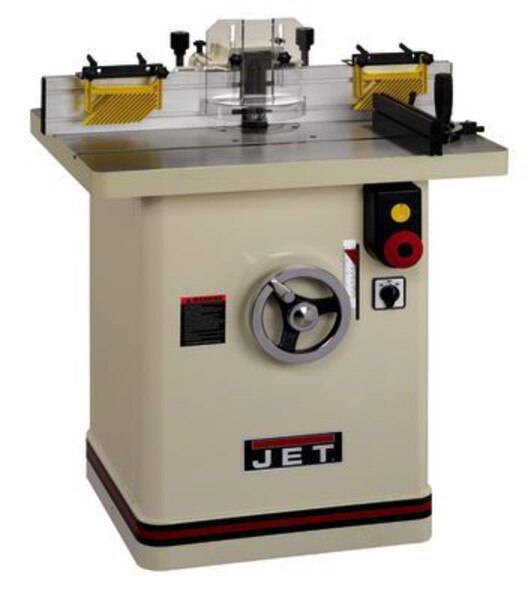

Jet Woodworking 708323 JWS-35X3-1 Shaper 3HP, 1Ph
\t\t\tFeatures- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle˜
- Large 26-3/4? X 32-1/4? precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting pins for irregular shaping
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Height: 41
- Length: 30
- Weight: 550
- Volume: 28.472
- Width: 40
- Spindle Size Under Nut (In.): 4
- Spindle Speed (RPM): 4000/6000/8000/10000
- Dust Collection Minimum CFM Required (CFM): 600
- Table Opening Diameter (In.): 23547
- Motor Power (HP): 3
- Spindles Included: 1-1/4"
- Motor Phase (PH): 1
- Maximum Spindle Diameter (In.): 37987
- Reversible: Yes
- Maximum Diameter Cutter Below Table (In.): 6
- Table T-Slot (In.): 3/4 x 3/8
- Spindle Travel (In.): 4
- Table Height from Floor (In.): 33-1/4
- Fence Size (L x H) (In.): 16 x 4-3/4
- Electrical Controls: Yes
- Prewired Voltage (V.): 230
- Maximum Diameter Cutter Above Table (In.): 37438
- Motor Voltage (V.): 230
- Dust Port Outside Diameter (In.): 4
- Motor Amps: 14
- Fence Travel (Major and Minor) (In.): 4, 1
- Table Insert Opening Diameter (In.): 2-9/16, 4-5/16
- Table Size (L x W) (In.): 32-1/4 x 26-3/4
- Table Inserts (In.): 2
