Item:414548, HVBS-56M 5X6" HORIZ V/S BANDSAW 1/2HP VS 82-230

(0)No Reviews yet
SKU: 517414548

This item is IN STOCK

Current Stock: 1

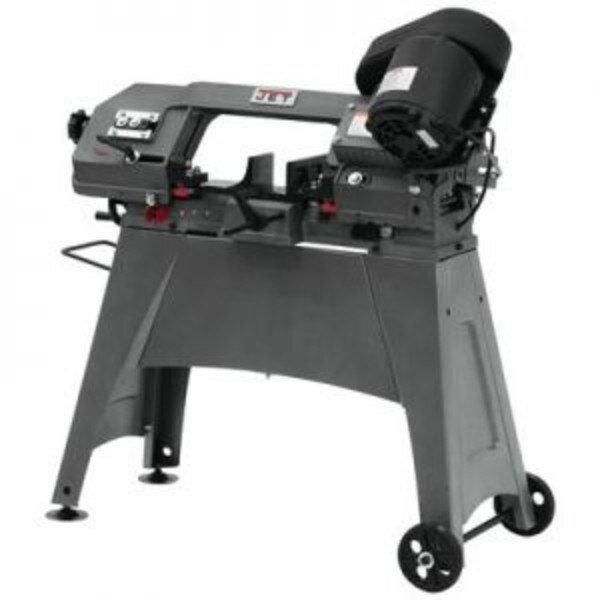

Jet 414548 HVBS-56M - Variable Speed 5" x 6" Horizontal/Vertical Bandsaw

Smaller shops and job sites alike benefit from the power and precision of JET when the HVBS-56M is put into action. Its 1/2HP motor offers great versatility and power when cutting in either a horizontal or vertical position. Long list of features and JET backed Two Year Warranty make this saw a must have for your operation.

  • For added safety, the HVBS-56M follows strict guidelines and electrical requirements to be certified by CSA Group
  • Heavy-Duty 14-gauge steel stand with shelf has been redesigned for stability, rigidity and ease of use.
  • Blade drive is a sealed, steel, heat treated worm driving a bronze worm gear in an oil bath
  • Handle and wheels for easy movement
  • Ball bearing supported blade wheel
  • Fully adjustable ball bearing blade guides
  • Auto shut off after cut
  • Vertical work table
  • Adjustable material stop
  • 1/2" Carbon Steel Blade

Cutting Capacity (W x D) (In.)5 x 6
Round at 90 Degrees (In.)5
Round at 45 Degrees (In.)3
Rectangle at 90 Degrees (In.)5 x 5-3/4 and 2 x 6
Rectangle at 45 Degrees (In.)4-1/2 x 3
Vise Swivels (Deg.)45°
Blade Speeds (SFPM)80, 120, 200
Blade Wheel Diameter (In.)7-3/8
Blade Length (In.)64-1/2
Blade Size (In.)1/2 x 0.025 x 64-1/2
Bed Height (In.)26
Motor (HP)1/2 HP, 115/230V, 1Ph
Weight (Lbs.)115
Overall Dimensions (L x W x H) (In.)36 x 20 x 39-1/2
Jet 414548 Variable Speed 5x6 Horizontal Bandsaw
