J-8203K 14" METAL/WOOD VERTICAL BANDSAW

(0) No Reviews yet
$2,159.00
SKU: 517414504C

This item is IN STOCK

Current Stock: 1

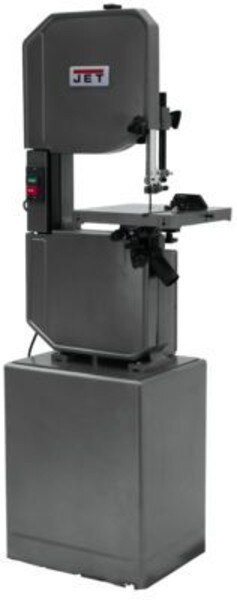

Jet Metalworking Tools 414504C J-8203K, 14" Metal/Wood Vertical Bandsaw

\t\t\t

Features
  • For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA Group
  • Solid, one-piece steel, base for extra stability
  • Conveniently located on/off switch
  • Variable speed drive system (8201VS)
  • Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
  • Miter gauge
  • Dust chute
  • Adjustable table
  • 14 TPI Metal Cutting Blade Included
  • 6 TPI Wood Cutting Blade Included
Specifications
  • Weight: 320
  • Motor (HP): 1 HP, 230/460V, 3Ph
  • Blade Size (In.): 3/8 x .025 x 92-1/2
  • Table Tilt to Left (Deg.): 15
  • Height Capacity (Max.) (In.): 6
  • Blade Length (In.): 92-1/2
  • Blade Speeds Wood (SFPM): 3,300
  • Blade Width (Min.-Max.) (In.): 1/8 - 3/4
  • Blade Width (Min.-Max.) (In.): 45
  • Blade Speeds Metal (SFPM): 39, 57, 78, 107, 142, 196, 278
  • Table Size (L x W) (In.): 14 x 14
  • Throat Capacity (In.): 12
  • Overall Dimensions (L x W x H) (In.): 25-1/2 x 22-3/8 x 73-1/2
  • Table Height (In.): 44
Jet 414504C J-8203K 14in Metal-Wood Vertical Bandsaw
