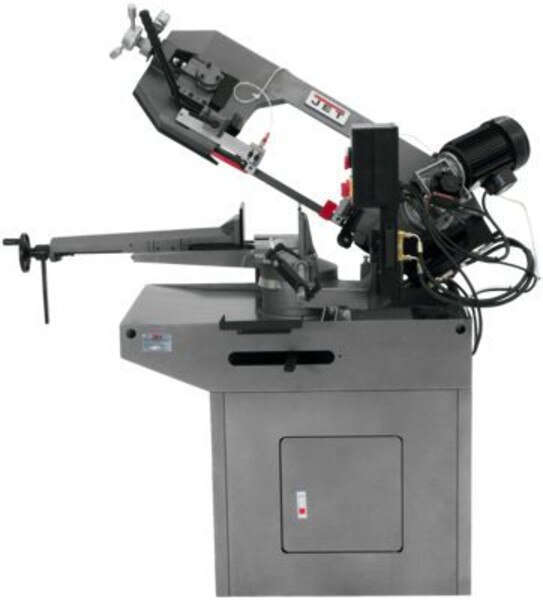

Jet Metalworking Tools 414467 J-9225, 8-3/4" Zip Miter Horizontal Bandsaw

Features
  • Mitering head swivels to cut any angle 0ø - 60ø while the work piece remains secured
  • Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts
  • Convenient control panel with overload protection
  • Heavy-duty cast iron saw head and sturdy base
  • Fully adjustable hydraulic downfeed system
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Quick positioning vise reduces set-up time
  • Coolant system
  • Adjustable material stop
  • 1" Bi-Metal blade
Specifications
  • Height: 59
  • Length: 59
  • Weight: 542
  • Volume: 76.953
  • Width: 38.2
  • Bed Height (In.): 38-7/16
  • Blade Length (In.): 96-1/2
  • Blade Size (In.): 1 x .035 x 96-1/2
  • Blade Speed (SFPM): 157, 314
  • Blade Wheel Diameter (In.): 11-5/8
  • Cutting Capacity (W x D) (In.): 8-3/4
  • Drive: Geared Head
  • Head Movement (Deg.): 60ø
  • Motor (HP): 1-1/2 HP, 230V, 3Ph
  • Rectangle at 45 Degrees (In.): 6-1/4 x 7-1/4
  • Rectangle at 90 Degrees (In.): 8-3/4 x 7
  • Round at 45 Degrees (In.): 6-1/4
  • Round at 90 Degrees (In.): 8-3/4
  • Overall Dimensions (L x W x H) (In.): 51 33 x 59-1/4
  • Prewired Voltage (V.): 230
  • Rectangle at 60 Degrees (In.): 3-1/2 x 3-7/8
  • Round at 60 Degrees (In.): 3-1/2
