Item:413452, HVBS-710G, 7" x 10-1/2" HorizoGEARED HEAD MITERING BANDSAW

(0)No Reviews yet
$3,149.00
SKU: 517413452

Out of Stock

This item is ON BACK ORDER

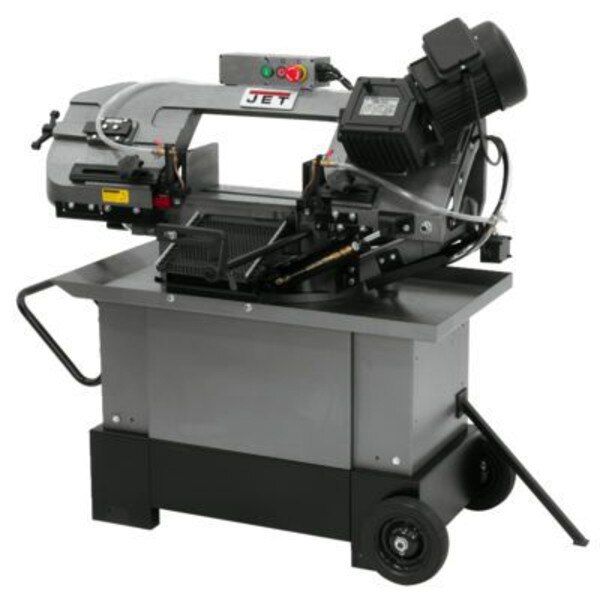

Jet Metalworking Tools 413452 HVBS-710G, 7" x 10-1/2" Horizontal/Vertical Mitering Geared Head Bandsaw

Features
  • Mitering head swivels to cut any angle 0ø - 45ø while the work piece remains secured
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Fully adjustable hydraulic downfeed system
  • Heavy-duty cast iron saw bow and bed
  • Large 8" wheels and handle for easy movement
  • Quick-positioning vise with fully adjustable jaws
  • Built-in, self propelled blade brush extends blade life
  • Vertical work table
  • Coolant system
Specifications
  • Height: 43
  • Length: 51
  • Weight: 462
  • Volume: 28.555
  • Width: 22.5
  • Bed Height (In.): 23
  • Blade Length (In.): 93-5/8
  • Blade Size (In.): 3/4 x .035 x 93
  • Blade Speed (SFPM): 145, 200, 245
  • Blade Wheel Diameter (In.): 11-3/4
  • Cutting Capacity (W x D) (In.): 7 x 10-1/2
  • Drive: Geared Head
  • Head Movement (Deg.): 45ø
  • Motor (HP): 1 HP, 115/230V, 1Ph
  • Rectangle at 45 Degrees (In.): 4-3/4 x 4
  • Rectangle at 90 Degrees (In.): 7 x 10-1/2
  • Round at 45 Degrees (In.): 4
  • Round at 90 Degrees (In.): 7
  • Vise Swivels (Deg.): 45ø
  • Overall Dimensions (L x W x H) (In.): 51 x 22-1/2 x 41
  • Prewired Voltage (V.): 115
Jet 413452 HVBS-710G 7in x 10-1/2in Bandsaw Mitering
