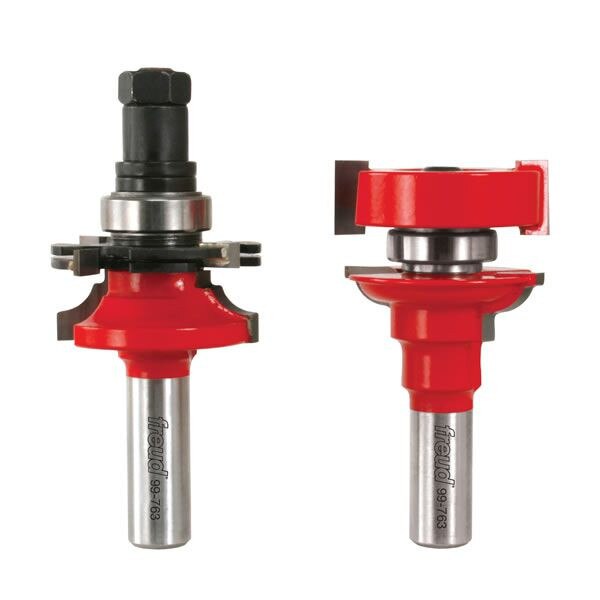

Item:99-763, BEAD RAIL & STILE LONG TENON

Application: Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock

Now with Freud´s unique, patented Premier Adjustable Rail and Stile Router Bit system, you are able to build any style of cabinet door in a range of door thicknesses and sizes! This extremely easy-to-use solution gives you unlimited creative freedom, and solves the long-standing challenges and limitations of frame and panel door construction.

Our new Rail & Stile system is the FIRST & ONLY solution on the market that allows you to:

1. Create extended tenons for extra door joint strength (patented solution)
2. Adjust groove width for different panel thicknesses
3. Choose from a variety of material thicknesses (5/8" to 1-1/4")
4. Add optional cutter to create glass or screen doors
5. Add optional cutters to create double sided profiles in thicker stock material

Features

• Adjustable shims adjust panel groove down to 7/32"(5.5mm) and up to 3/8" (9.5mm) thick, ideal for plywood panels.
• Unique cutter geometry to eliminate tear-out.
• Cuts all plastic laminates.
• Patented Extended Tenon Capability - Top portion of cutter, including bearing and spindle, is removed to produce the front of the long tenon profile.
• TiCo Hi-Density Carbide to maximize bit life and material finish.
• Perma-SHIELD coating reduces heat & pitch build-up from rust.

Specification

• Item #:99-763
• Profile:Round Over Bead
• D - Overall Diameter:1-11/16"
• h - Carbide Height:1-1/4"
• M – Minor Height:15/64"
• R - Large Radius:9/32"
• H - Overall Length:3-5/8"
