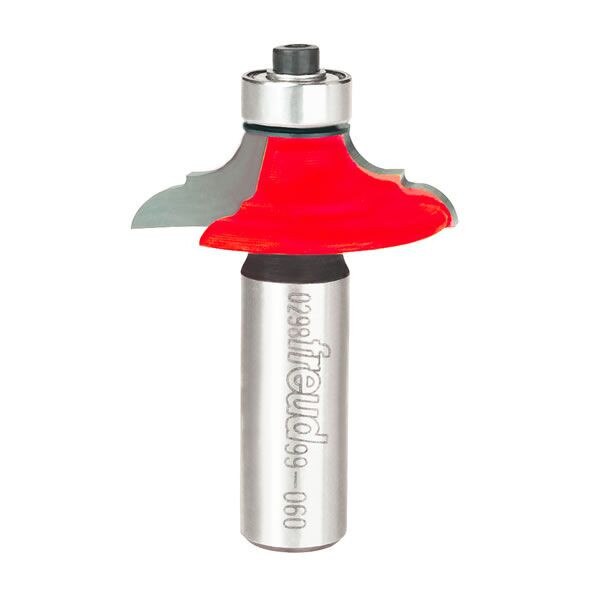

Item:99-060, RAIL & STILE

Application: Creates rail and stile doors matched reverse profiles

• 99-060 and 99-061 bits cope and stick cut the rails and stiles, and also can be used alone to form a matching edge profile. 99-062 cuts the panel slot and the back of the tongue on the coped piece.
• Cuts all composition materials, plywoods, hardwoods, and softwoods.
• Use on hand-held and table-mounted portable routers.

• Item # 99-060
• D – Overall Diameter:1-1/2"
• n – Small Diameter:1"
• h – Carbide Height:7/16"
• m – Minor Height:1/16"

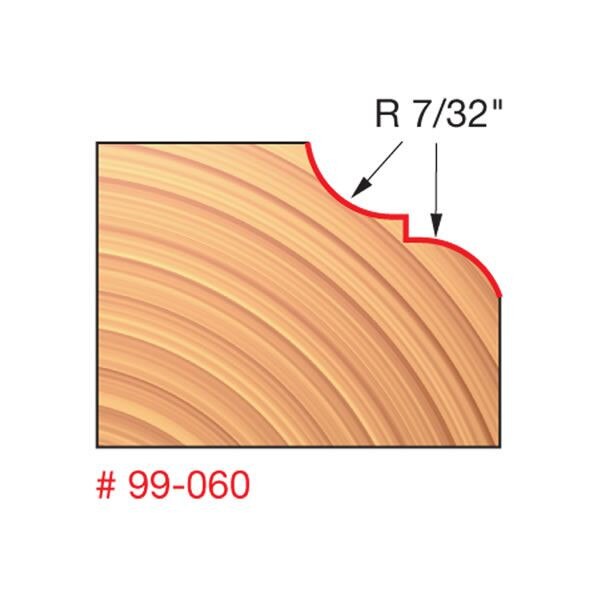

• R1 - Large Radius7/32"
• A – Shank Diameter:1/2"
• H – Overall Length:2-1/4"
