Item:39-506, D TOP BEARING CLASSIC.BEAD

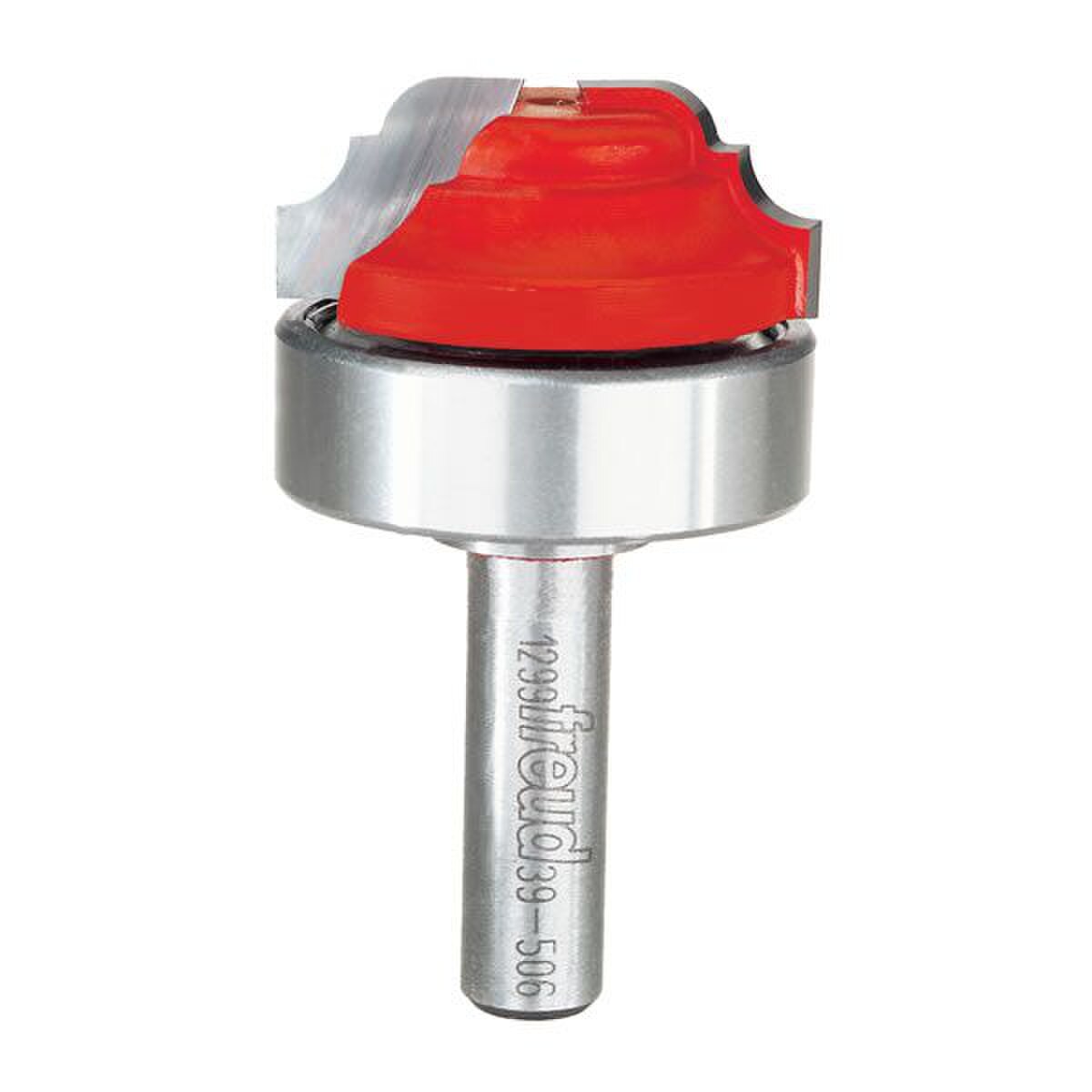

Freud 39-506 Carbide Tipped Top Bearing Classical Cove & Bead Groove Bit
Specification
Specification
- Item No.:39-506
- (D) Overall Diameter:1-3/8"
- (n) Small Diameter:27/32"
- (h) Carbide Height:9/16"
- (R1) Large Radius:3/16"
- (R2) Small Radius:5/32"
- (A) Shank Diameter:3/8"
- (H) Overall Length:2-7/16"

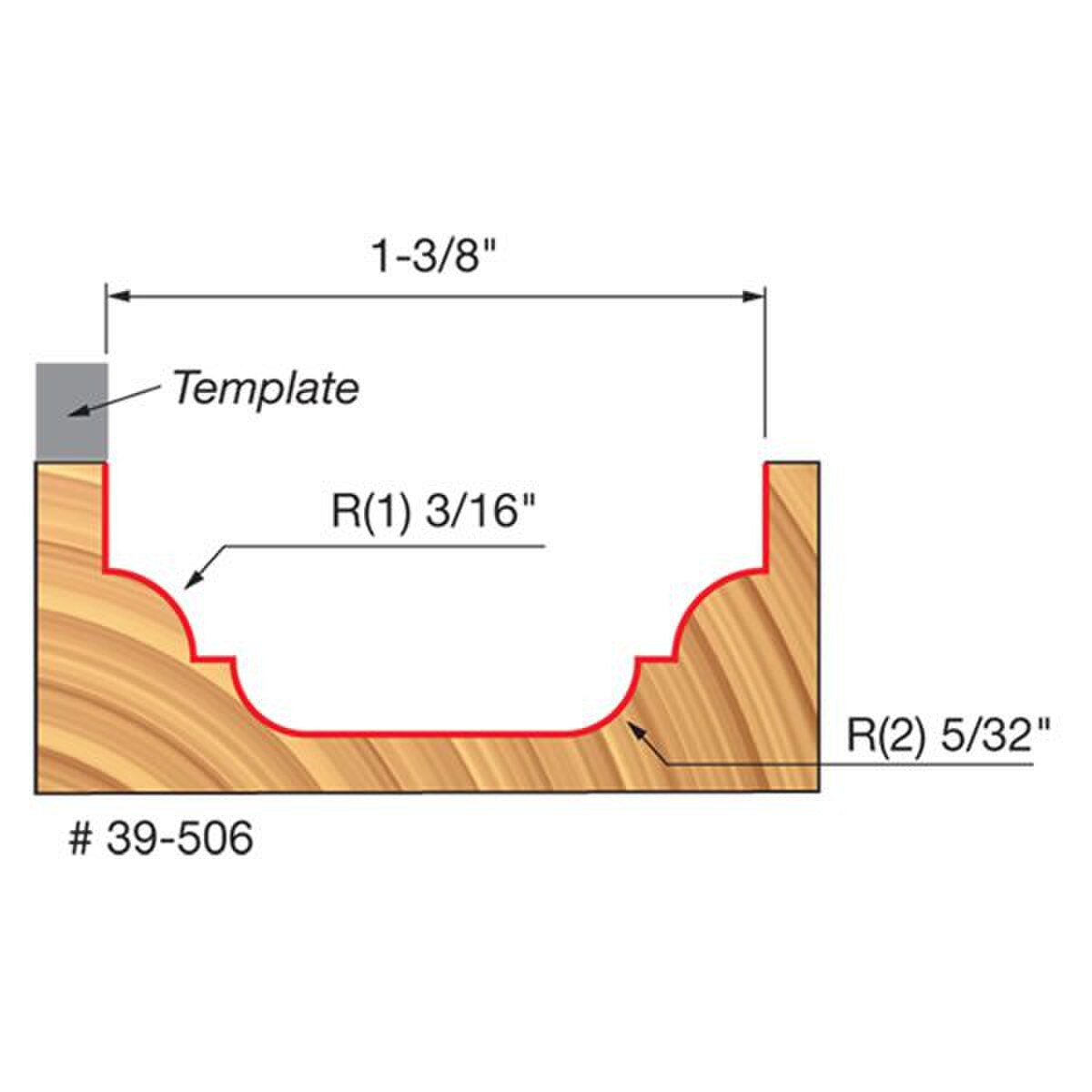

- This bit produces a cove and bead groove with a flat bottom to add depth to furniture or millwork, and it can also create a decorative edge profile
- Cuts all composition materials, plywoods, hardwoods, and softwoods
- Use on hand-held and table-mounted portable routers
Freud 39-506 1-3/8" Carbide Tipped Top Bearing Classical Cove & Bead Groove Bit, 3/8" Shank. For Template Work, Decorative Edges And Elaborate Grooves
