Item:04-098, TWO FLUTE STRAIGHT BIT
Freud 04-098 Solid Carbide Double Flute Straight Bit
Scoring saw blade should be used together with panel sizing blade to avoid chipping on lower side of panels coated on both sides. Scoring depth up to 2mm. Adjustable to the kerf width of the main blade by the use of spacers. Ideal for vertical or sliding table saws where there is no downward pressure on the sheets to hold them flat or for operations wanting to use a series of panel saws and limited scoring blades.
Specification
Scoring saw blade should be used together with panel sizing blade to avoid chipping on lower side of panels coated on both sides. Scoring depth up to 2mm. Adjustable to the kerf width of the main blade by the use of spacers. Ideal for vertical or sliding table saws where there is no downward pressure on the sheets to hold them flat or for operations wanting to use a series of panel saws and limited scoring blades.
Specification

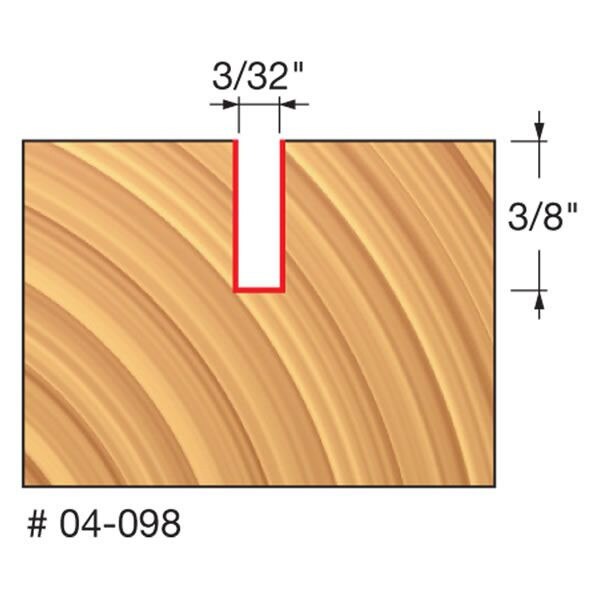

- Item No.:04-098
- (D) Overall Diameter:3/32"
- (h) Carbide Height:3/8"
- (A) Shank Diameter:1/4"
- (H) Overall Length:1-5/16"
- Freud straight bit cuts smoother than other bits because of the precise shear and hook angles - End of bit relief allows for fast plunging
- Cuts all composite materials, plywoods, hardwoods, and softwoods
- Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers
This 04-098 3/32" Double Flute Straight Bit, 1/4" Shank is one of the best Freud Tools that is preferred for it's fast chip clearance and high production work with fine finishing. Whereas, it’s fast plunging and it's 2 flutes provide a smooth finish in hard and softwoods alike.
