Item:36-L352, 3HP LT UNISAW W/BIES FENCE 52" CUT

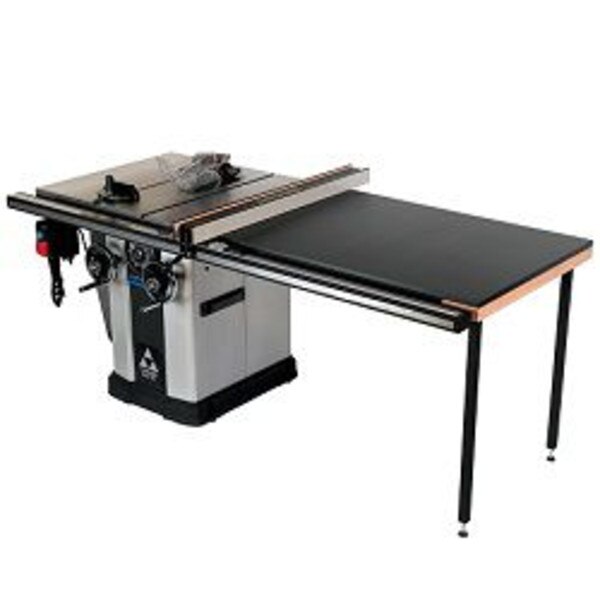

Delta 36-L352 3 HP 10" Left Tilt UNISAW with 52" BIESEMEYER® Fence

Since 1938, the UNISAW has been the standard of table saws.

Features

• BI-LEVEL DUST EXTRACTION™ system results in optimal dust collection.
• Improved table-top geometry provides more surface area, providing stability, smoothness and superior ease.
• Largest blade opening in class makes fine tuning riving knife and changing blades easier than ever.
• On-board storage.
• Independently certified to applicable standards.
• BIESEMEYER™ Fence System, with hairline pointer and built-in tape, allows precision set-ups.
• Single-cast trunnion system controls vibration, providing smooth operation and dependable accuracy.
• SURE-LOCK™ Dual front cranks allow easy, accurate, and repeatable blade-height and bevel adjustments.
• Powered by 3 HP, 230 V, 1 phase, 60 Hz motor.
• SURE-LOCK™ dual front cranks provide convenient access.
• Precision bevel gauge for ease of visibility.
• Bevel dial allows fine tuning of the blade bevel with ease and provides accuracy to within 1/4 degree.
• Tool-free split guard for improved blade line of sight.

Specifications

Model No.	36-L352
Amperage (A)	12
Arbor Size (in)	0.625
Bench or Stationary	Stationary
Blade Diameter (in)	10
Blade Speed (rpm)	4,300
Color / Finish	Gray/Black/Silver
CSA Certified	No
ETL Listed	No
Fence Included	Yes
Flesh Sensing System	No
Horsepower (hp)	3
Maximum Cut Depth @ 45° (in)	2-1/8
Maximum Cut Depth @ 90° (in)	3-1/8
Maximum Dado Width (in)	1-1/8
Miter Gauge	Yes
Phase	1
Rip Capacity - Left (in)	13-1/2
Rip Capacity - Right (in)	52
Table Height From Floor (In)	35
Tool Weight, Net (lbs)	661 lbs.
UL Listed	Yes
Voltage	230V
Warranty	5 Years

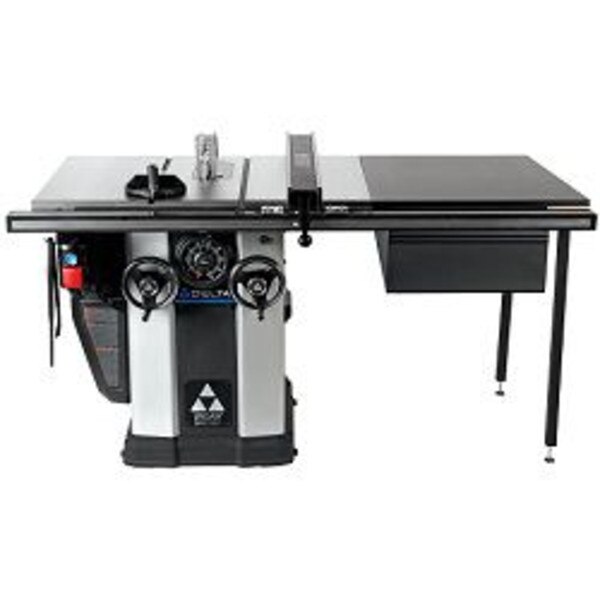

Shown with optional 78-970 drawer
