Item:36-6020, 10 IN. JOBSITE SAW W/ STAND AND WHEELS

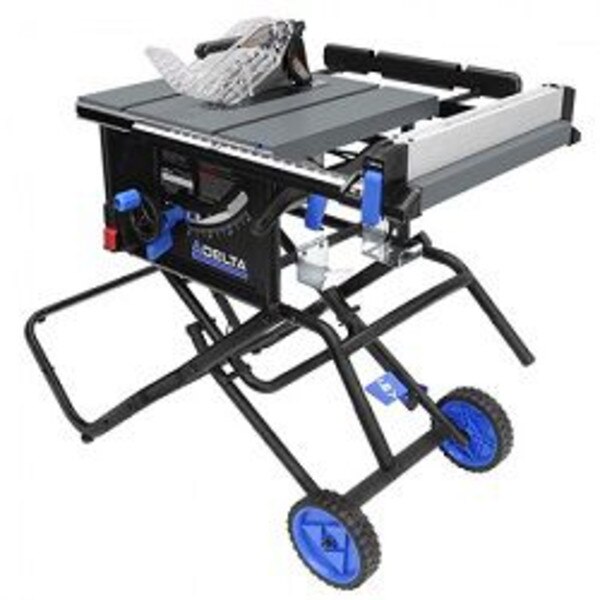

Delta 36-6020 Portable Table Saw with Stand
The Delta jobsite table saw provides plenty of power in a compact design easily transported from your shop to the jobsite.
Features
- 120 V, 15 amp, single phase, 60 Hz motor provides the power to a 2 x 4 on edge.
- 5,000 rpm blade speed for a clean cut.
- Unique tubular frame structure for maximum support and stability.
- Aluminum table top with anti-friction coating for smooth cutting.
- Blade retracts completely below table for easy clean up.
- On board storage for guard, fence, anti-kick back pawls, push stick, miter gauge and spare blades.
- Industry standard tool free split guard design allows true rise and fall riving knife.
- Tool less assembly of riving knives and anti-kick back pawls.
- Easy blade height and bevel adjustment with quick lock.
- Slide out rear support extension for supporting longer workpieces.
- Extending rip fence for cutting wider workpieces.
- 2-1/2 in. dust port for a cleaner work area.
- Large on/off switch.
- Quiet operation.
- Large bevel scale.
- Cord wrap for storage.
- Cast aluminum miter gage with 7 popular detentes.
- Large diameter steel folding stand for stability.
- Saw is welded, not bolted to stand for a solid one piece assembly.
- Easy one step latch allows user to fold or unfold stand with one hand.
- Large diameter semi pneumatic wheels for easy transporting on uneven surfaces or stairs.

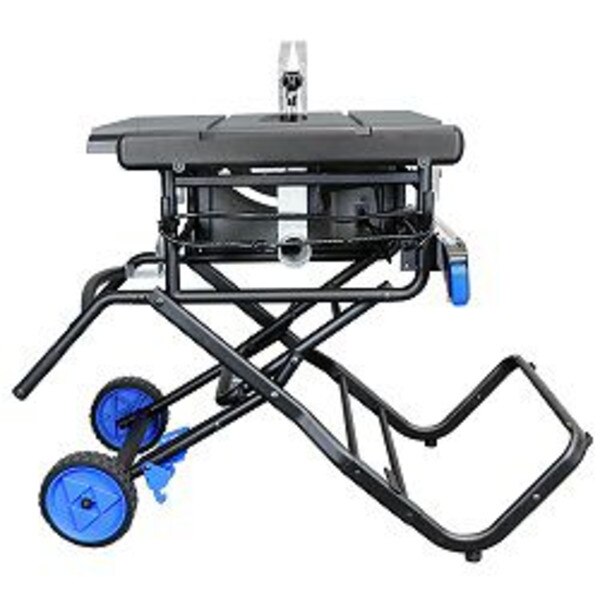

- Stand fold up to store saw horizontally.
| Model No. | 36-6020 |
| Amperage (A) | 15 |
| Arbor Size (in) | 0.625 |
| Bench or Stationary | Bench |
| Bevel Capacity (°) | 45 |
| Bevel Direction | Left |
| Blade Diameter (in) | 10 |
| Blade Material | Carbide Tipped |
| Blade Speed (rpm) | 5000 |
| Caster Platform Included | No |
| Color / Finish | Black/Blue |
| Cord Length (ft) | 6 |
| CSA Certified | No |
| Drive Motor System | Gear |
| Dust Blower | No |
| Dust Port | Yes |
| Dust Port Outside Diameter (in) | 2.5 |
| Electrical Cord Configuration | 120V |
| ETL Listed | No |
| Fence Included | Yes |
| Flesh Sensing System | No |
| Horsepower (hp) | 1 |
| Maximum Cut Depth @ 45° (in) | 2.5 |
| Maximum Cut Depth @ 90° (in) | 3.5 |
| Maximum Dado Diameter (In) | 8 |
| Maximum Dado Width (in) | 0.8125 |
| Micro Adjust Fence | No |
| Miter Gauge | Yes |
| Miter Slot Depth | 0.25 |
| Miter Slot Width | 0.375 |
| Motor Bearings | Ball |
| Number of Miter Slots | 2 |
| Phase | Single Phase |
| Repetitive Cut Marking system | No |
| Rip Capacity - Left (in) | 7.25 |
| Rip Capacity - Right (in) | 30 |
| Spindle Lock | Yes |
| Table Height From Floor (In) | 34.75 |
| Table Length (in) | 36.4375 |
| Table Width (in) | 47.25 |
| Table Material | Aluminum |
| Tool Weight, Net (lbs) | 76 lbs. |
| UL Listed | Yes |
| Voltage | 110/120V |
| Warranty | 5 Years |
Includes saw, miter gauge, fence, blade, push stick, and manual.
