Item:36-5152, 10 IN. LEFT TILT TABLE SAW 52 CAST IRON WINGS

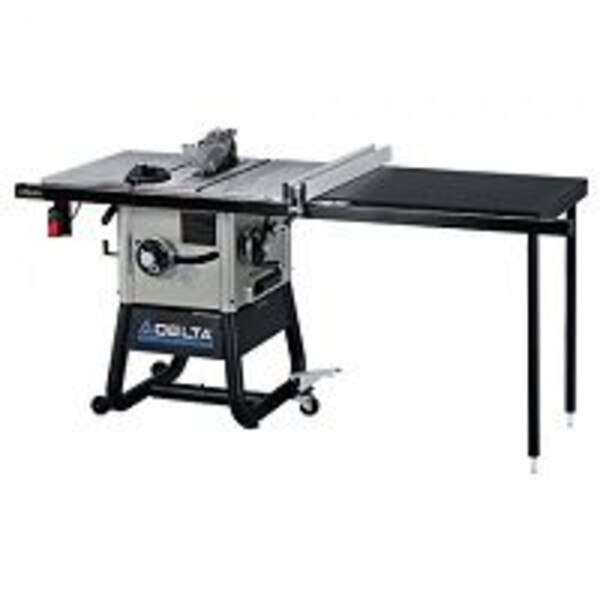

Delta 36-5152 10" Left Tilt Contractor Saw with 52" RH Rip
Features
Features
- Unique tubular stand for maximum support and stability
- Ease of mobility with two fixed wheels and one swivel wheel
- Cast iron table top with LH and RH stamped steel extension wings
- Heavy-duty one piece rail system for precision cuts every time
- Heavy-duty RH extension boar with support legs
- Heavy-duty Biesemeyer style fence with dual rip windows
- Quick assembly stand with less parts
- Blade brake stops the blade within seconds of the power being turned off
- Large, easy-to-access on/off switch
- Industry standard tool-free split guard design allows a true rise-and-fall riving knife by using a lever on the inside of the throat plate
- Tool-less assembly of riving knife and anti-kickback pawls
| Model No. | 36-5152 |
| Motor | 15 Amp Induction Motor, 1PH, 60 Hz. |
| Voltage | Dual Voltage 120V - 240V |
| Arbor | 5/8" |
| Blade Tilt | 45º Left |
| Max. Depth of Cut at 90º | 3-1/2" |
| Max. Depth of Cut at 45º | 2-1/4" |
| Max. Rip Right of Blade | 52" |
| Max. Rip Left of Blade | 15" |
| Table Size | 20" wide x 27" deep (40" x 27" with wings and 76-1/2" wide with extension board) |
| Dado Capacity | 13/16" x 8" Stacked Dado |
| Dust Port Size | 2-1/2" Hose with 4" Adapter |
| Width with Fence | 83" |
| Height | 44" |
| Depth | 33" |
| Weight | 305 lbs. |
Unique tubular stand for maximum support and stability
