Item:55438, IN-STILE/RAIL STRAIGHT PLYWOOD

Amana Tool  55438 Mission (Straight) Flat Panel InStile & Rail Set

InStile & Rail System Flat Panel Adjustable Stile & Rail Router Bit Sets
Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary - using the provided shims - after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

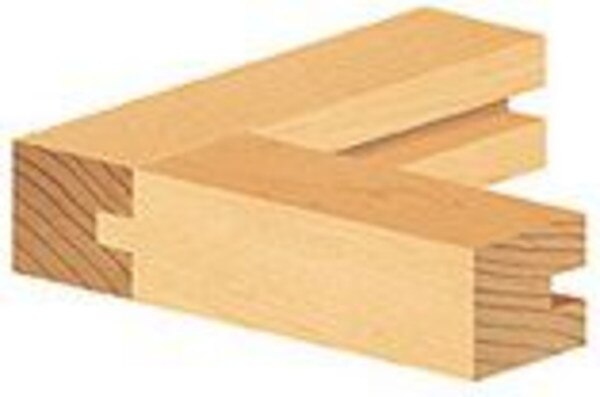

Cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit.

• Adjust the panel groove width (3/16" to 9/32" for 1/4" plywood), (7/16" to 17/32" for 1/2" plywood).
• Cuts frame stock from 5/8" through 1-1/4" thickness.
• Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit.
• Each set includes 2 pcs. (1 for stile cuts & 1 for rail cuts & shims).

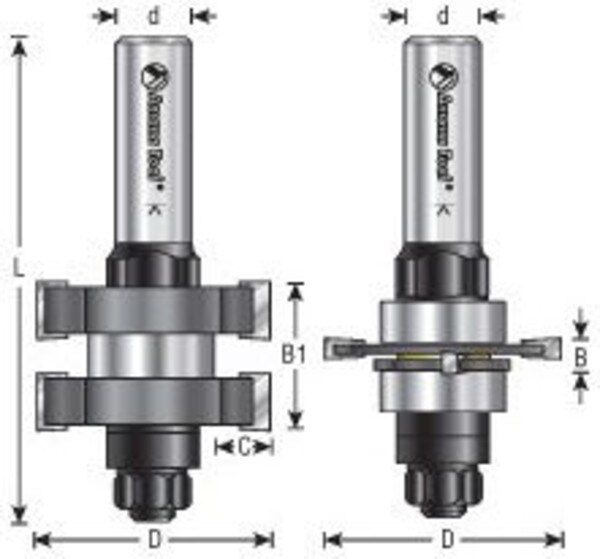

Specifications

Tool No.	55438
(D) Diameter	1-5/8"
(B to B1) Cutting Length	5/8" to 1-1/4"
(C) Cutting Width	3/8"
(d) Shank	1/2"
(L) Overall Length	3-11/32"
Type	Mission (Straight)
