Item:55421, 2 PC CONCAVE STIL/RAIL 3/4 MAT

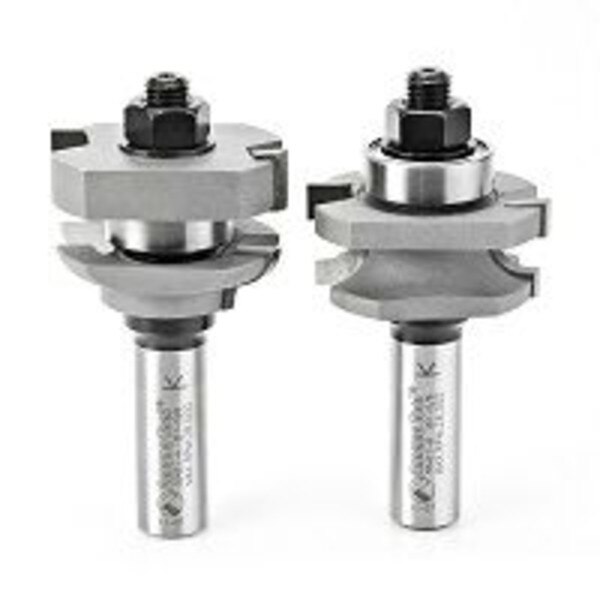

Amana Tool  55421 Carbide Tipped Concave Stile & Rail Set

2-pc Concave Stile & Rail Router Bit Sets for 3/4 Inch Material

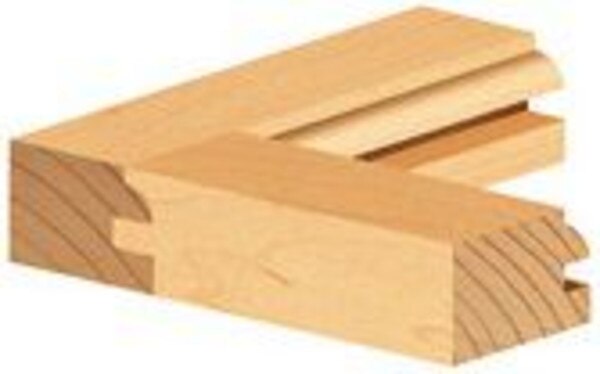

Our stile and rail sets give you two complete bits, one for doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. These sets are offered in two configurations, one for working material up to 1" thick, the other for material between 5/8" and 7/8" in thickness. The same three profiles are available in either configuration.

3/4" Material
Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Specifications

Tool No.	55421
(D) Diameter	1-5/8"
(R) Radius	1/4"
(B) Cutting Length	11/16"
(B1) Cutting Length	1/4"
(d) Shank	1/2"
(L) Overall Length	3-1/8"
Type	Concave
Wings	2
