Item:49663, STILE AND RAILE SET 1/4 SHANK

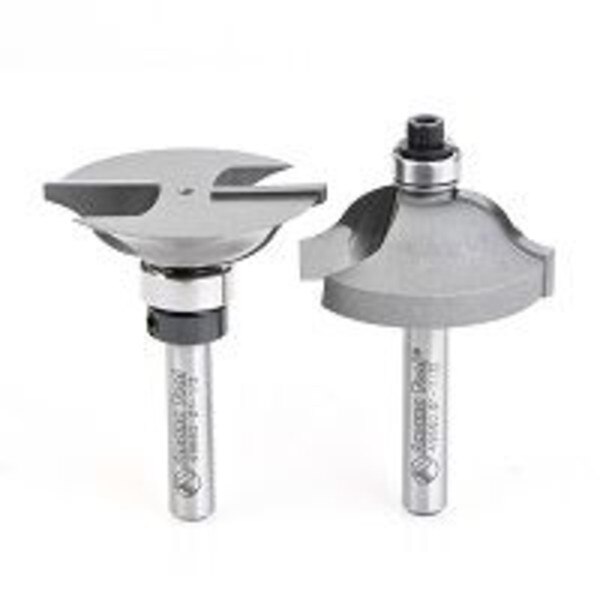

Amana Tool 49663 Carbide Tipped Ogee Stile & Rail Set

Bead Stile & Rail Router Bits

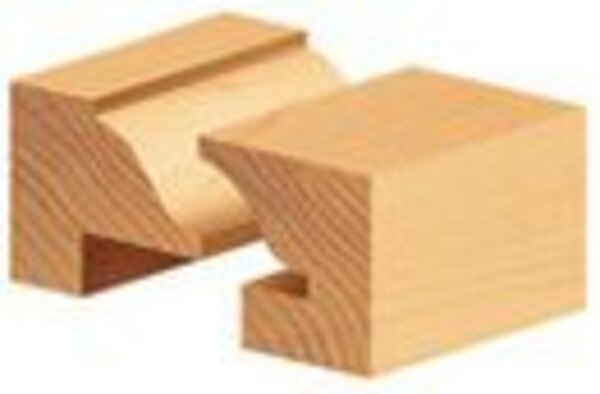

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching "regular" bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4" shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

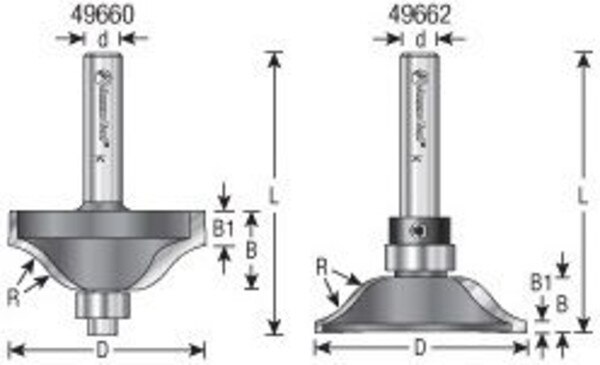

Specifications

Tool No.	49663
Consists of:	49660 Ogee Stile	49662 Ogee Rail
(D) Diameter	1-11/32"	1-1/2"
(R) Radius	11/32"	11/32"
(B) Cutting Height	1/2"	3/8"
(B1) Cutting Height	1/4"	3/32"
(d) Shank	1/4"	1/4"
(L) Overall Length	2"	2"
Flutes	2	2
Replacement Bearing	47702	47701
