Item:49647, STILE AND RAIL SET 1/4 SHANK

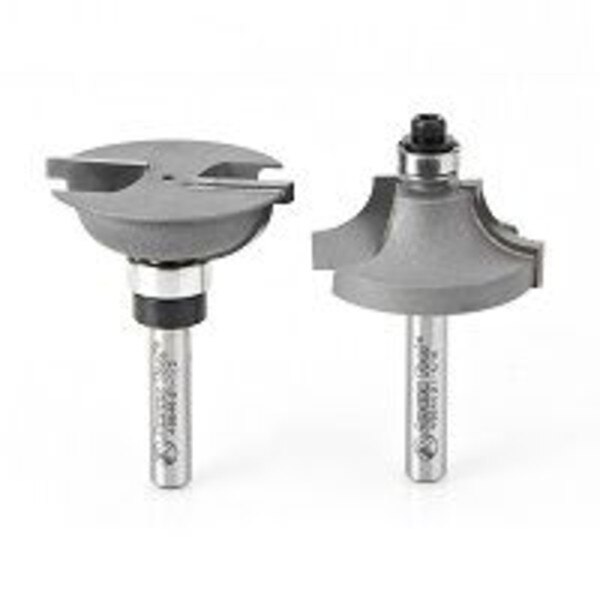

Amana Tool 49647 Carbide Tipped Bead Stile & Rail Set
Bead Stile & Rail Router Bits

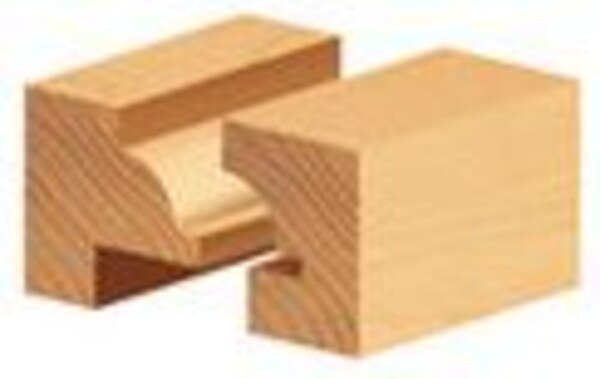

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching "regular" bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4" shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

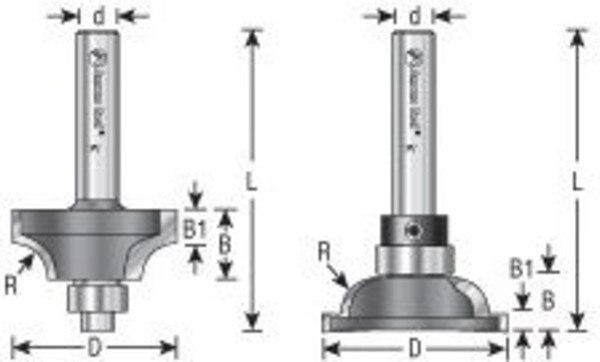

Specifications
| Tool No. | 49647 | |
| Consists of: | 49644 Bead Stile | 49646 Bead Rail |
| (D) Diameter | 1-5/16" | 1-1/2" |
| (R) Radius | 3/8" | 3/8" |
| (B) Cutting Height | 5/8" | 9/16" |
| (B1) Cutting Height | 17/64" | 1/8" |
| (d) Shank | 1/4" | 1/4" |
| (L) Overall Length | 2" | 2" |
| Flutes | 2 | 2 |
| Replacement Bearing | 47702 | 47701 |
These profile cutters are a unique and versatile set that can be used for general profile routing, glass doors and windows, as well as stile and rail work.
