Item:55430, 2 PIECE OGEE STILE & RAIL SET
Amana Tool 55430 Carbide Tipped Ogee Stile & Rail Set
2-pc Ogee Stile & Rail Router Bit Sets for 3/4 to 1 Inch Material
These sets include two trim cutters for stock 7/8" through 1" in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8" thick.) Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8" to 1" thick, a template must to used.

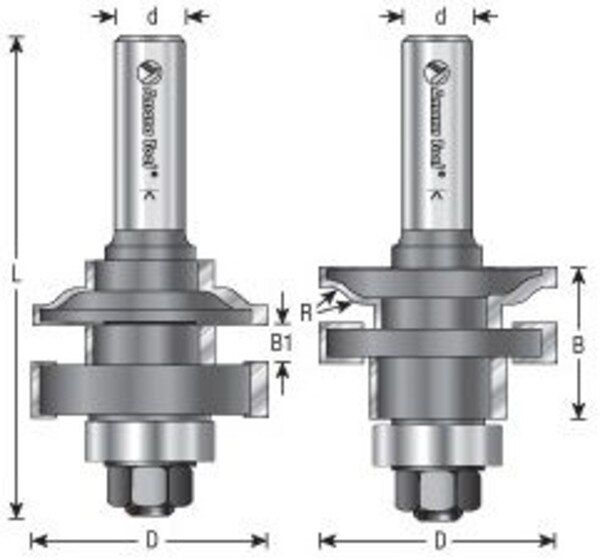

Specifications
| Tool No. | 55430 |
| (D) Diameter | 1-5/8" |
| (R) Radius | 1/4" |
| (B) Cutting Length | 1-1/16" |
| (B1) Cutting Length | 1/4" |
| (d) Shank | 1/2" |
| (L) Overall Length | 3-5/16" |
| Type | Ogee |
| Wings | 2 |

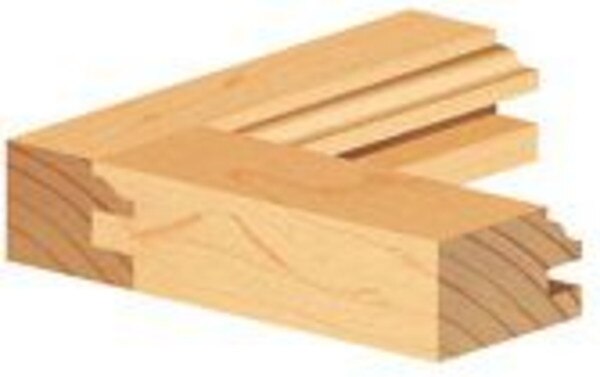

This rail and stile set gives you two complete bits, one for doing the rail cuts, one for the stiles.
