Item:1790818, PF3-JR FEEDER 1/4HP 1Ph 115V

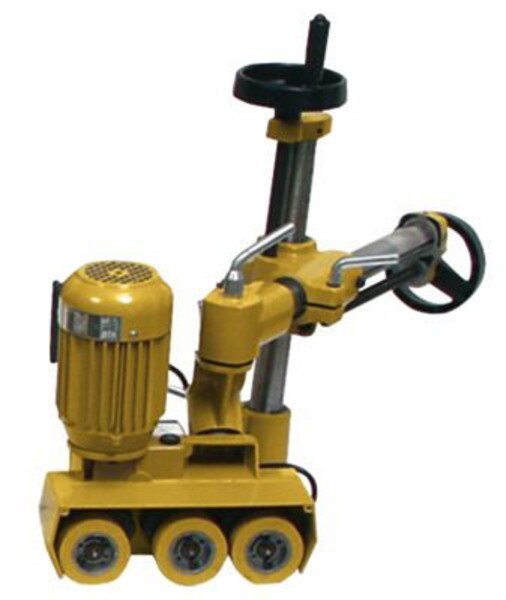

Powermatic 1790818 PF3-JR Feeder, 1/4HP 1PH 115V
\t\t\tFeatures- Roller chain and sprockets provide positive feeding for a variety of work
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Feeder body, column base and joints are cast iron for heavy duty operation
- Rollers can be changed out easily and quickly
- Height: 23.2
- Length: 27.5
- Weight: 71
- Volume: 4.357
- Width: 11.8
- Maximum Height of Rollers Parallel to Tabletop (In.): 6
- Movement - Vertical (In.): 6.52
- Swing (Deg.): 360
- Motor Phase: 1
- Motor Voltage (V.): 115 only
- Distance Between Rollers - Center to Center (In.): 4.32 - 3.34
- Movement - Horizontal (In.): 9.8
- Rotation: Forward/Reverse
- Motor Power (HP): 1/4
- Number of Speeds: 4 Speeds
- Number of Rollers: 3
- Column Diameter (In.): 1.6
Free Assembly on items picked up @ Circle Saw
