Item:MOF001, Dual Mode Precision Plunge Rou

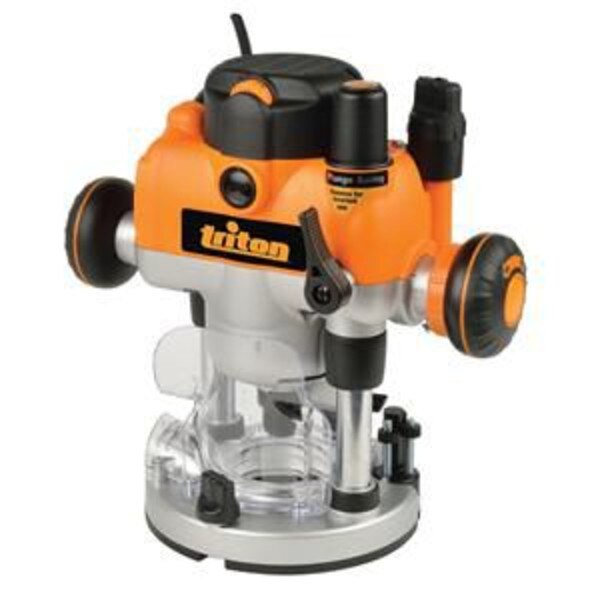

Triton MOF001 2-1/4 HP Plunge Router
Finally a plunge router designed to be used in a router table
Award-winning router with compact and powerful 2-1/4hp motor and 8000-21,000 rpm electronic variable speed constant under load. Works great in the Kreg Router Table. Easy-set, direct reading 3-stage turret for precise pre-set cut depths. Single dial switch from plunge to fixed-base router with rack and pinion height adjustment.
Product Features
1/2" and 1/4" collet for a greater range of bit choices.
2-1/4hp motor for maintained speed under load
Automatic spindle lock engages only when power switch cover is closed
Soft start and variable speed for all cutter types
Micro depth adjustment mechanism enables continuous fine depth adjustment through the full plunge range.
Rack and pinion height adjustment and table adjustment eliminates the need for expensive lifting mechanisms when used with router tables
Electronic speed control ensures a fine finish on all materials
Removable plunge spring for easy bit adjustment when table mounted
3-stage turret with direct reading scales for precise pre-set cut depths
Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
Multi-function fence provides optimum control for hand-held use and circle cutting
Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table.
Excellent dust extraction for a cleaner, safer working environment
Easy access brushes for quick changes.
Through the base single-wrench bit change is achieved with the automatic spindle lock
Safety switch shutter locks closed in bit-change mode to prevent router being switched on
Technical Specification
Depth Adjustment Infinite
Electronic Speed Maintenance
Yes
Micro Adjustment
Yes
No Load Speed 8000 - 21000rpm
Plunge Range 0 - 2-5/16"
Power 2-1/4hp / 13A
Power On Indicator Yes
Product Height 11-1/2"
Product Length 13-1/4"
Product Weight 15.8lbs
Product Width 10-1/4"
Safety Power Switch Yes
Speed Maintenance Under Load 8,000 - 21,000rpm
What's in the box
2-1/4hp Router
1/4" collet
1/2" collet
Table height winder
Multi-function fence
Collet wrench
Extended base plate
Instruction manual, like you will ever open it.
Triton MOF001 Dual Mode Precision Plunge Router 2-1/4 hp
