Item:71938, 19X38 HEAD W/180X FLATTER 71938OP STAND EXTRA

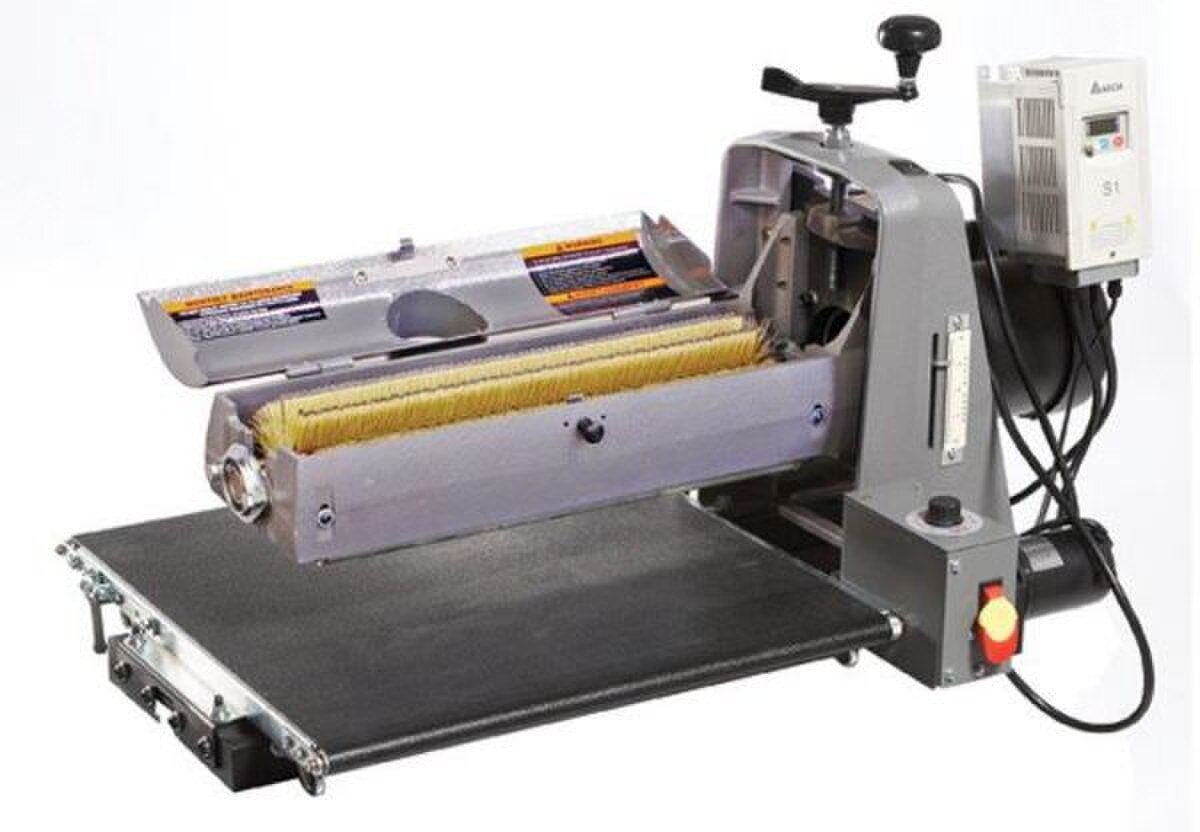

Supermax 71938 19x38" Combo Drum and Brush Sander
Perfect for the small shop or woodworking enthusiast, the SuperMax 19-38 Drum Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results! The 19-38 Drum Sander offers 19" width sanding in a single pass and 38" in a double pass.
INCLUDES 180 GRIT FLADDER STRIPS
71938-1 Sanding Drum NOT INCLUDED
Features
- Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
- Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding.
- Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
- Extra-wide conveyor to properly support stock over 19” wide. The conveyor table is 22” wide to add support to the work piece.
- Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.
Specifications
- Comes Equipped with a 180 Grit Flatter Head for Profile Sanding
- Various heads and grits available as well as a Sanding Drum
- Give us a call with your application questions
- Sanding Capacity:
- Maximum Width (in): 38 (two passes)
- Minimum Length (in): 2-1/4
- Maximum Thickness (in): 4
- Minimum Thickness (in): 1/32
- Dimensions (in): 40L x 24W x 24H
- Brush Speed: AC Inverter, infinitely variable, 200-1000 RPM
- Drum Speed: 1740 RPM
- Dust Hood: 1- 4" vacuum port, min. 600 CFM recommended
- Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, infinitely variable 0-10 FPM
- Drive Motor (TEFC): 1-3/4 HP
- Power Requirements: 110 V 20 amp
- Shipping Weight (lbs): 242 (2 boxes) bench-top unit only
NEED ACCESSORIES? |
CLICK HERE FOR THE 71938OP OPEN STAND |
CLICK HERE FOR THE 71938-1 SANDING DRUM |
Perfect for the small shop or woodworking enthusiast, the SuperMax 19-38 Drum and Brush Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results! The 19-38 Drum Sander offers 19" width sanding in a single pass and 38" in a double pass.
