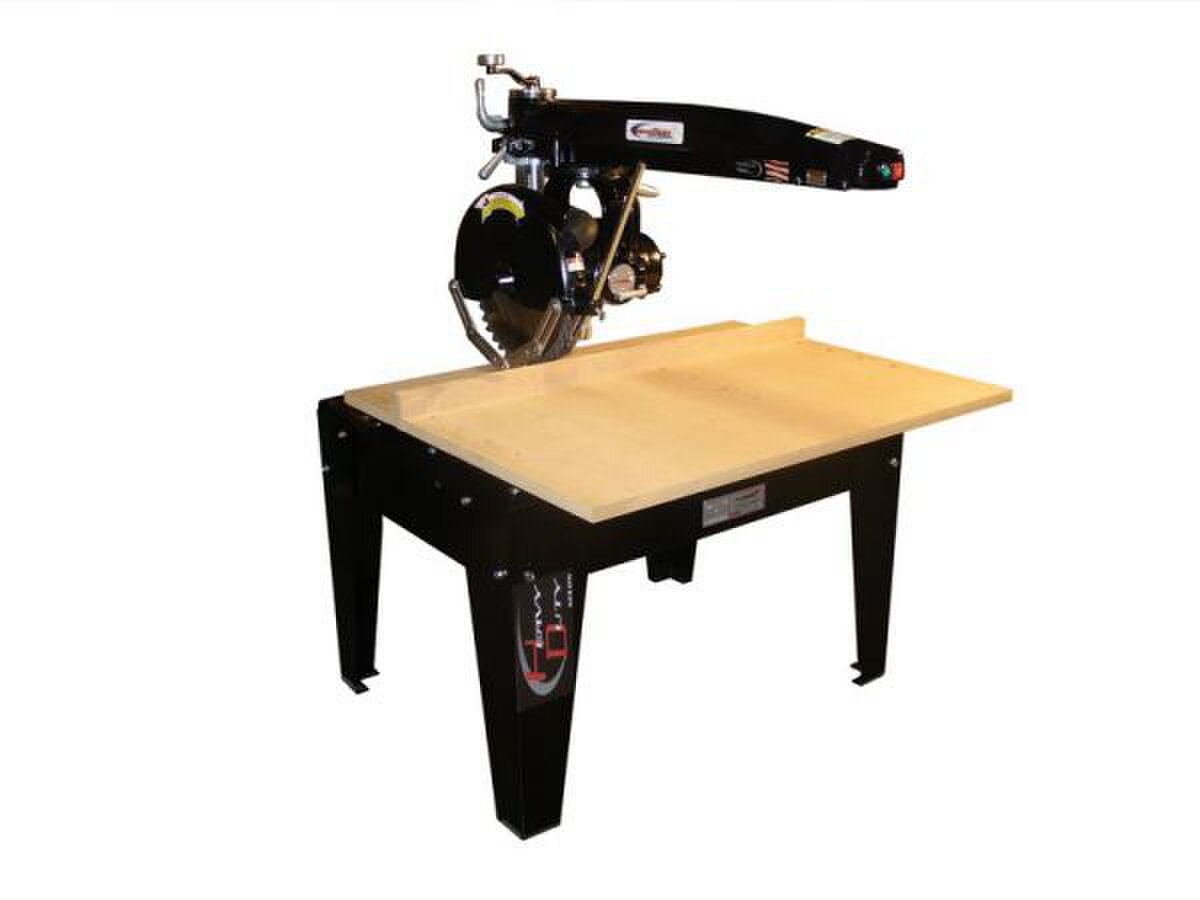

Item:3546, 16" RADIAL ARM SAW 230 VOLT 5 HP 3 PHASE 51x50x50 570#
3546 Wood Cutting Series Radial Arm Saw 16" Heavy Duty Series Saw
This Saw is supplied with a 5 HP 3 Phase 230 Volt Motor
If you need 440-460 there is an upcharge for this. Contact us for pricing options.
The Heavy Duty Series is a very precise machine made for the rigors of every day industrial use. Their versatility makes them well suited for use in custom cabinet shops, school tech departments, lumber yards and home centers, packaging departments, and manufacturing plants.
This flexibility is because of their ability to perform straight cuts, bevel cuts, miter cuts and compound bevels, as well as swiveling to rip down panels. They are also precise enough for squaring panels up to 24” wide. Other operations such as dadoing panels are done with ease because of their OSC manufactured flat bottom induction motor. From this flat bottom motor to its heavy cast iron arm, and through out its heavy gauge steel powder coated frame and legs to its oversized table top our Heavy Duty Series radial arm saws say quality, repeatability, accuracy, and value.
These machines have proven themselves in thousands of manufacturing companies through out the world. These machines are built for everyday repeatability and accuracy and will be able to support any application that they are designed to do, for years to come.
Type V Upgrades Include:
- Powder coated castings and frame

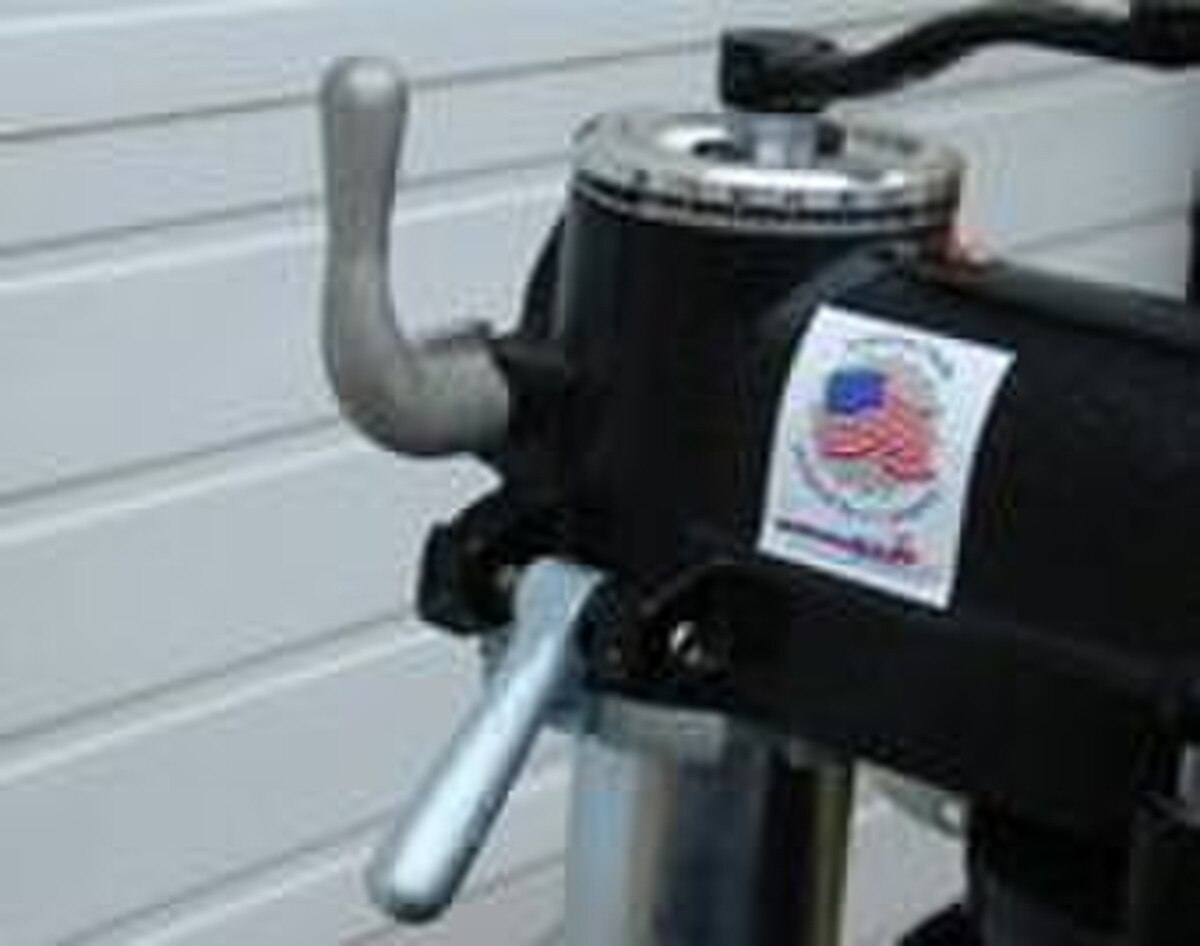

- As always, Proudly Manufactured in the USA Series Specific Highlights
- 5 hp 3 phase TEFC motor available in 208/230/240/380/400/575 50/60 Hz (Overload Must be Ordered)
- Automatic blade braking system

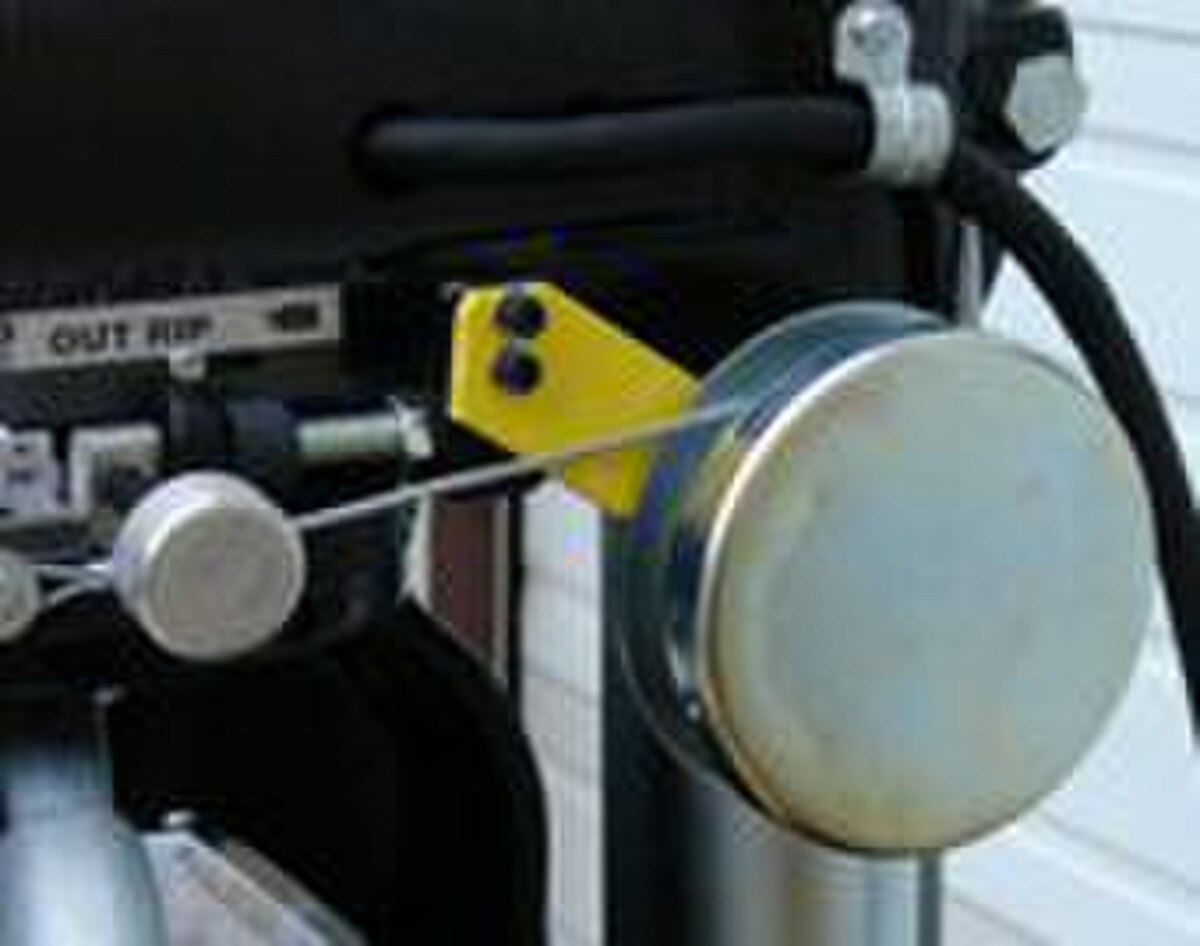

- Carriage return spring
- 24" crosscut on medium arm machines
- Precision carriage riding on 8 wide contact double row ball bearings, providing a very smooth vibrations free travel.
- Oversized MDF table top Powder coated heavy gage steel frame and legs
- Standard work table height 33"
- Arbor nut and precision ground blade collars Wrench kit (includes allen arbor wrench, flat arbor wrench & misc allen wrenches)
- Optional Equipment: Pneumatic clamping system Roller extension tables S-series measuring system
- Dust collection shroud
