Item:354169, JDP-17 DRILL PRESS

(0)No Reviews yet
$1,099.99
SKU: 517354169

Out of Stock

This item is ON BACK ORDER

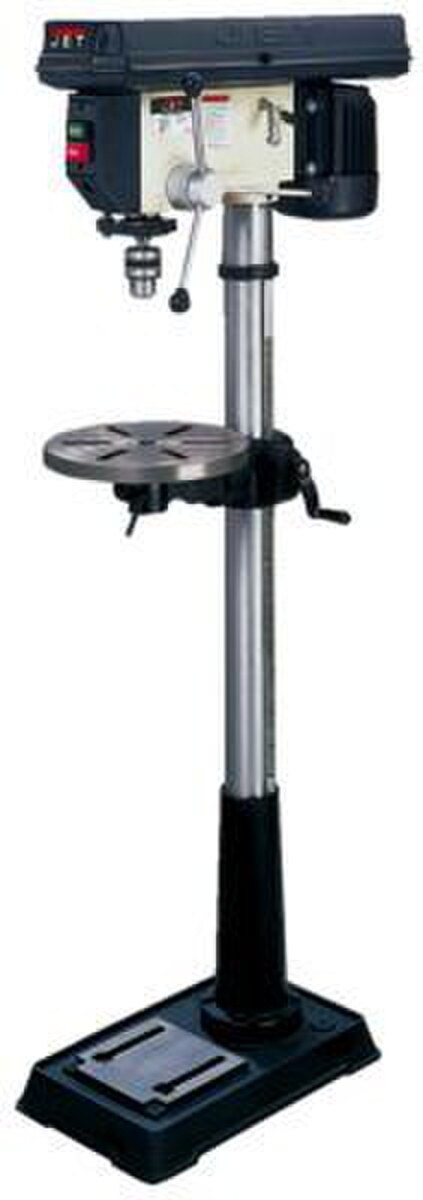

Jet Woodworking 354169 16-1/2" Drill Press

Features
  • 16 speeds lets you choose the best speed for the job
  • Quick release crank operated worktable height adjustment rotates + or - 45? for versatility
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • X pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Spindle has high-quality ball bearing construction for long life
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in worklight (bulb not included) provides additional visibility of your work
Specifications
  • Height: 12.8
  • Length: 54.5
  • Weight: 209
  • Volume: 9.487
  • Width: 23.5
  • Motor Power (HP): 42798
  • Number of Spindle Speeds: 16
  • Spindle Speed Range (RPM): 200 - 3630
  • Spindle Distance to Table (Max.) (In.): 29-1/8
  • Style (Type): SV_1375591258781
  • Table Tilt (Deg.): 45 R & L
  • Column Diameter (In.): 39508
  • Swing (In.): 16-1/2
  • Chuck Size (In.): 42863
  • Base Size (In.): 11-1/8 x 19-5/8
  • Motor Amps: 9/4.5
  • Table Size (L x W) (In.): 13-3/4
  • Spindle Travel (In.): 39541
  • Motor Phase (PH): 1
  • Spindle Taper: MT2
Jet 354169 JDP-17MF 16-1/2in Drill Press 3/4HP
