Item:LU90M010, 10 X 100 X 5/8 TGG ALUMINUM

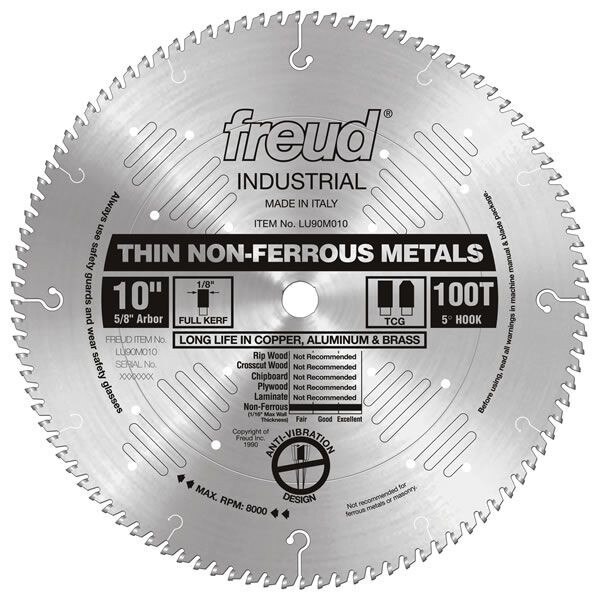

Freud LU90M010 Thin Non-Ferrous Metal Blade

This blade produces a smooth, burr-free finish when cutting thin aluminum, braqss and other non-ferrous metal extrusions. A high tooth count with a 5º negative hook angle allows the teeth to slice efficiently through the material without binding. The requirements on the cutting edge greatly differ with non-ferrous metals than with cutting wood. With this in mind Freud formulated a special carbide with high impact strength for this blade. Freud recommends use of a liquid lubricant when cutting non-ferrous materials. This can be accomplished with a spray of WD-40 or other similar types of lubricants every 4 or 5 cuts. Wax sticks are not recommended.

Specification

• Perma-SHIELD Item No.:LU90M010
• Diameter:10"
• Teeth:100 TCG
• Arbor:5/8"
• Kerf:.110"
• Plate:.087"
• Cutting Thin Aluminum And Other Non-Ferrous Metals
• Positive Hook Angles -Produce a smoother cut with less material distortion and burr-free cuts
• Freud-Made TiCo Carbide -Specifically designed to cut non-ferrous metals, extends tooth life and withstands impact

Recommended Use & Cut Quality (1/16" Max Wall Thickness)

• Rips wood: Not Recommended
• Crosscuts wood: Not Recommended
• Chipboard: Not Recommended
• Plywood: Not Recommended
• Laminate: Not Recommended
• Non-Ferrous: Excellent

(Not recommended for ferrous metals or masonry)
