Item:1617EVS, 2.25 HP Electronic Variable Speed Fixed-Base Router

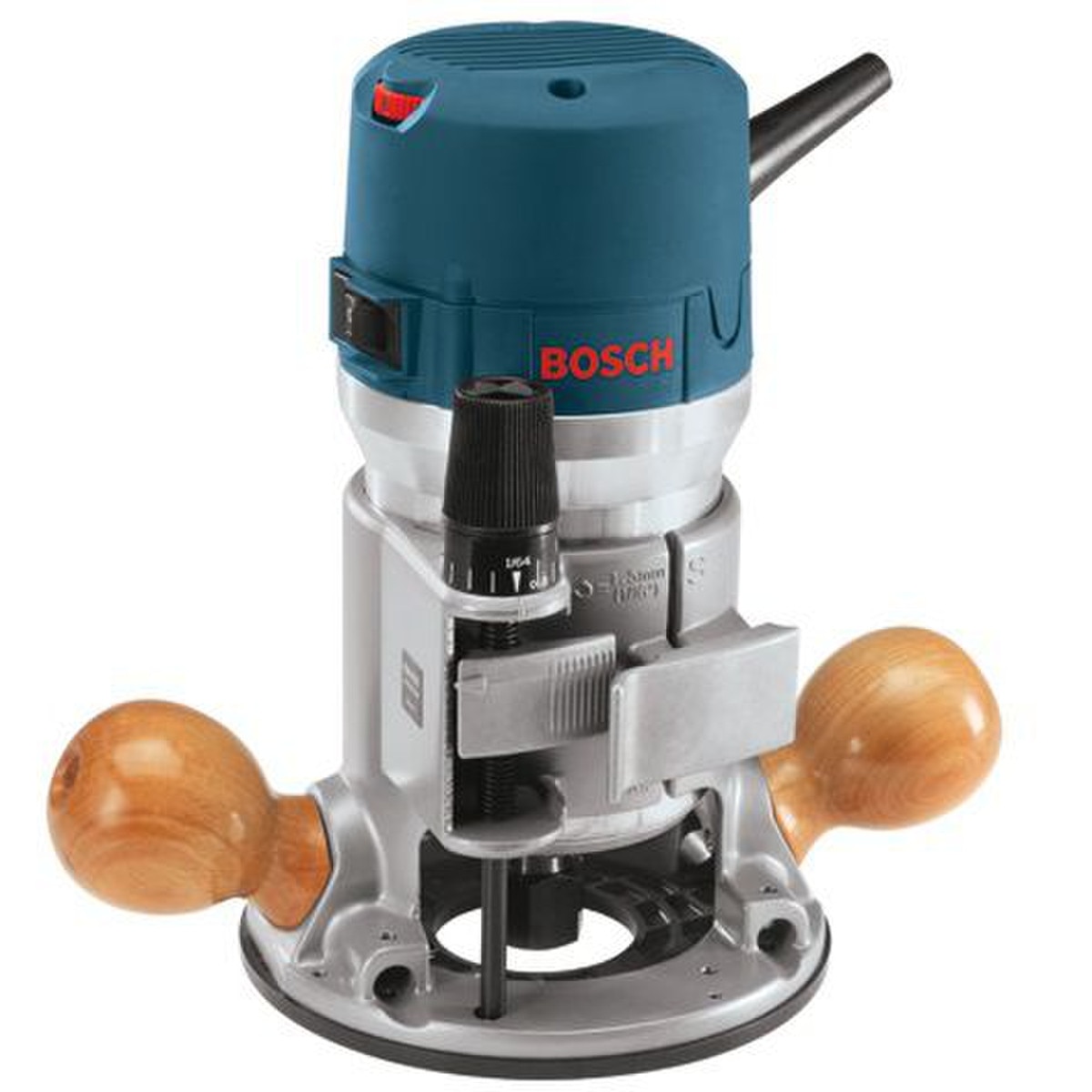

Bosch 1617EVS 2.25 HP VS Fixed-Base Router

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.

Features

• 12 Amp motor
• Constant Response™ circuitry stabilizes start-up torque
• Adjustable speed dial (8000-25,000 RPM)
• Microfine bit-depth adjustment
• Rounded hardwood handles maximize user control
• Right or left switch location - for user preference and consistency (motor does not rotate during depth adjustment)
• Threaded three-hole base pattern
• Dust-sealed power switch
• One-piece armature shaft
• 2 In. sub-base opening
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Double insulated
• Power Switch - now includes dust-sealed power switch
• Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
• Optional RA1126 quick-change Templet guide adapter (sold separately) - for fast and easy change of Bosch RZ1-series Templet guide (or threaded Templet guides, if optional RA1100 adapter is also used)
  Excel-Shee

Specifications

Model No.	1617EVS
Amperage	12
Base Diameter	6"
Base Opening	3-3/4"
Case Type	No Case Included
Collet Capacity	1/4", 3/8", 1/2", 8 mm
Contents	Router, 1/4 In., and 1/2 In. Self Releasing Collet Chucks, 16 mm Shaft Wrench, 24 mm Collet Nut Wrench
Cord Length	10'
Country of Origin	Mexico
Dust Collection	No
Fixed-Base Depth Range	1-5/8"
Horsepower	2.25
Max. Motor HP	2.25
No Load RPM	8,000-25,000
Rating	120V AC
RPM	25,000
Service Baretool Numbers	0601617739
Serviceable	+
Spindle Lock	No
Subbase Opening	2"
Tool Level	2 - Corded – variable speed intermediate
Use on Model No.	RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables
Voltage	120V
Warranty	Limited 1 Year
Weight	8.3 lbs.

Includes

• 1/4" S. R. Collet Chuck -- 2 610 906 283
• 1/2" S. R. Collet Chuck -- 2 610 906 284
• 16mm Shaft Wrench -- 2 610 991 388
• 24mm Collet Nut Wrench -- 2 610 992 417
• Chip Shield -- 2 610 991 389
• Fixed Base -- RA1161
• T-Handle Hex Height Adjustment Wrench -- 2610923193
• Pack of 3 10-24 Screws for Table Mounting -- 2610925813
