Item:45364, PLUNGE UPPER B/B SHEAR FACE

(0)No Reviews yet
$62.63
SKU: 14245364

This item is IN STOCK

Current Stock: 2

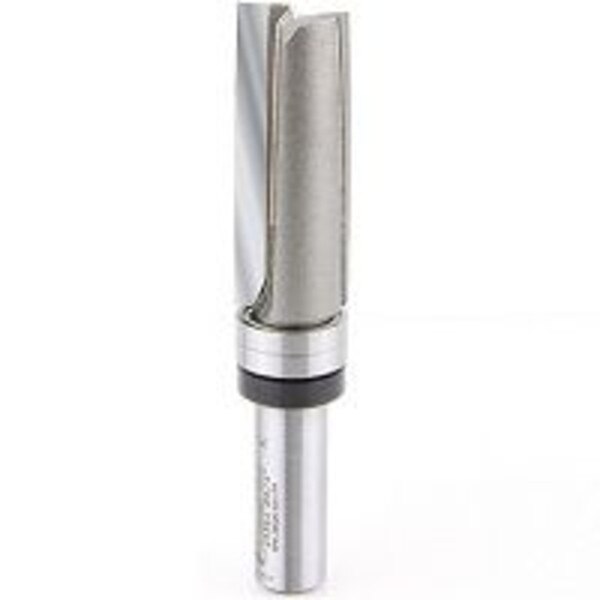

Amana 45364 Flush Trim Plunge Template Bit with Upper Ball Bearing


Carbide Tipped - 2 Flute

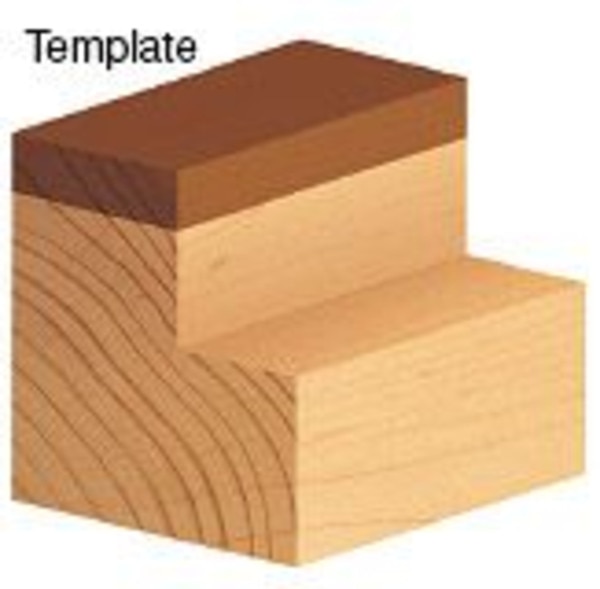

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts, and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

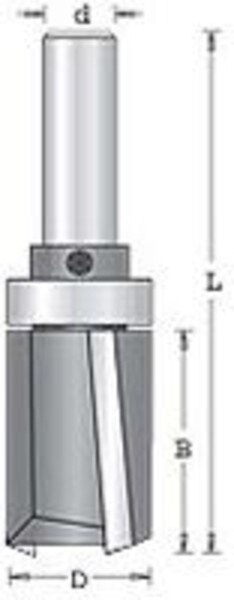

Specifications
Tool No.
45364
ØD
3/4"
B
2"
Ød
1/2"
L
4"
Replacement Bearing
47721
Replacement Collar
47739

Down-Shear Angle - The shear angle custs, faster, cleaner and lasts longer than straight angle because of the chip removal speed. Shear angle is recommended in most instances especially where large diameters are used.
It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts, and can be used in handheld and table-mounted routers.
